USA - Choose CountryMV Power Cable (XLPE Insulated)
XLPE Wire & Cables, Allied Wire & Cable
This product has been discontinued and removed from our shelves.
Application
Medium voltage XLPE insulated power cable are used for electricity supply in power distribution and transmission lines featuring AC 50HZ and 6kv-35kv rated voltage, suitable for power distribution network, industrial unit or other areas concerning large quantities of power supply. As it features flame-retardant, there is no risk of extension of fire accident and recuing losses greatly, perfect for metro, tunnel, high-rise building and other areas with denser cable laying.

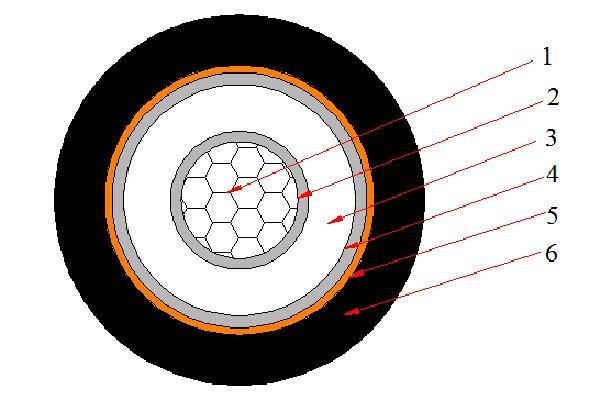

- Conductor: Copper/aluminum/solid/stranded round conductor
- Conductor screen: Semi-conducting polymer
- Insulation: XLPE insulation
- Insulated screen: Semi-conducting polymer
- Metal screen: Copper tape or copper wire
- Overall cable sheath: PVC/PE
Standard
IEC 60228 cable conductor
The medium voltage XLPE insulated power cable meets "IEC 60502-2 standard, or it is a kind of high-molecular polymer insulated power cable with rated voltages from 1kV (Um=1.2kV) to 35kV (Um=40.5kV) , the second part: Cables with rated voltage of 6kV (Um=7.2kV) and 30kV (Um=36kV)
Medium voltage power cable-copper conductor IEC 60502-2| XLPE insulated power cable | Single core | Three-core | |
| YJV (N2XSY) | YJV (N2XSEY) | CU/XLPE/CTS/PVC | |
| YJY (N2XS2Y) | YJY (N2XSE2Y) | CU/XLPE/CTS/PE | |
| YJSV (N2XSY) | YJSV (N2XSEY) | CU/XLPE/CWS&CTS/PVC | |
| YJSY (N2XS2Y) | YJSY (N2XSE2Y) | CU/XLPE/CWS&CTS/PE | |
| YJV62 (N2XSBY) | YJV22 (N2XSEBY) | CU/XLPE/CTS/STA/PVC | |
| YJV63 (N2XSB2Y) | YJV23 (N2XSEB2Y) | CU/XLPE/CTS/STA/PE | |
| YJV72 (N2XSRY) | YJV32 (N2XSERY) | CU/XLPE/CTS/SWA/PVC | |
| YJV73 (N2XSR2Y) | YJV33 (N2XSER2Y) | CU/XLPE/CTS/SWA/PE |
| XLPE insulated power cable | Single core | Three-core | |
| YJLV (NA2XSY) | YJLV (NA2XSEY) | AL/XLPE/CTS/PVC | |
| YJLY (NA2XS2Y) | YJLY (NA2XSE2Y) | AL/XLPE/CTS/PE | |
| YJLSV (NA2XSY) | YJLSV (NA2XSEY) | AL/XLPE/CWS&CTS/PVC | |
| YJLSY (NA2XS2Y) | YJLSY (NA2XSE2Y) | AL/XLPE/CWS&CTS/PE | |
| YJLV62 (NA2XSBY) | YJLV22 (NA2XSEBY) | AL/XLPE/CTS/STA/PVC | |
| YJLV63 (NA2XSB2Y) | YJLV23 (NA2XSEB2Y) | AL/XLPE/CTS/STA/PE | |
| YJLV72 (NA2XSRY) | YJLV32 (NA2XSERY) | AL/XLPE/CTS/SWA/PVC | |
| YJLV73 (NA2XSR2Y) | YJLV33 (NA2XSER2Y) | AL/XLPE/CTS/SWA/PE |
