PVC Insulated Wire
Overhead Conductors, Insulated Cables & Wires, Interstate Wire
PVC insulated wire belongs to the series of laying electric wires, used for laying at fixed places. It is used as connectors of drive, lighting, electric equipment, instrument and telecommunication equipment with rated voltage 450/750V (U0/U) or below. Some of the plastic wires are used for the equipment with AC rated voltage 300/300V or below.
| Type | Name | Laying Place and Requirement | Long Term Working Temperature (℃) |
| 227IEC01/05 BV BLV | Copper conductor, PVC insulated wires | Fixed laid indoors, conduits, etc. | 70 |
| Aluminum conductor, PVC insulated wires | |||
| 227IEC07 BV-90 | Heat resistant copper conductor, PVC insulated wires at 90℃ | Mainly laid at the places of high temperature environment and can be laid indoors, conduits. | 90 |
| BVR | Copper conductor, PVC insulated flexible wire | For laying in permanent places where flexibility is required. | 70 |
| 227IEC10 BW | Copper conductor, PVC insulated PVC sheathed round wires | Fixed laid, fit for the places with high mechanical protection and moisture. Can be laid in the air or underground. | 70 |
| BLW | Aluminum conductor, PVC insulated PVC sheathed round wires | ||
| BWB | Copper conductor, PVC insulated PVC sheathed flat wires | ||
| BLWB | Aluminum conductor, PVC insulated sheathed flat wires | ||
| 227IEC02RV 227IEC06RV | Copper conductor, PVC insulated flexible connector | Mainly used for the places where flexibility is required for middle and light style moving electronics, home appliances, power and lighting system and so on. | 70 |
| 227IECC42 RVB | Copper conductor, PVC insulated flat flexible connector | ||
| RVS | Copper conductor, PVC insulated flexible twisting connector wire | ||
| 227IEC52 RW 227IEC53 RW | Copper conductor, PVC insulated PVC sheathed round flexible connector (light and common type) |
| Nominal Sectional Area (mm2) | Conductor No./Dia. (mm) | Nominal Insulated Thickness (mm) | Max. Overall Dia. (mm) | Conductor Resistance at 20 ℃ | Min. Insulated Resistance at 70℃ (MΩ/km) | Weight (Kg/km) |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.1 |
| 0.75 | 1./0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 |
| 1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.2 |
| Nominal Sectional Area (mm2) | Conductor No./Dia. (mm) | Nominal Insulated Thickness (mm) | Max. Overall Dia. (mm) | Conductor Resistance at 20 ℃ | Min. Insulated Resistance at 70℃ (MΩ/km) | Weight (Kg/km) | ||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
| Nominal Sectional Area (mm2) | Conductor No./Dia. (mm) | Nominal Insulated Thickness (mm) | Max. Overall Dia. (mm) | Conductor Resistance at 20 ℃ | Min. Insulated Resistance at 70℃ (MΩ/km) | Weight (Kg/km) |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.6 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
Construction

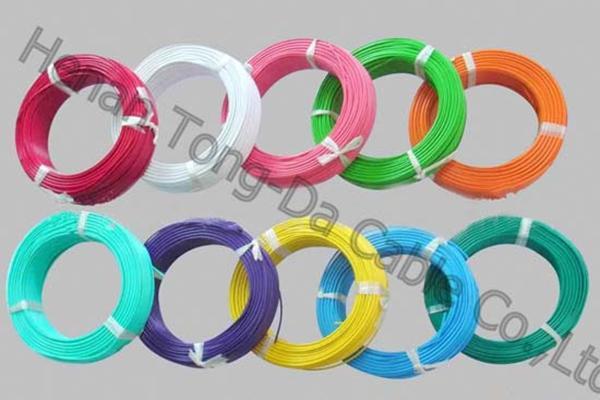

According to the conductor type, including solid conductor PVC insulated electrical wire, stranded PVC insulated wire, flexible PVC insulated wire with different colors.
According to its shape, including flat wire, round wire, etc. with different colors.
According to its core number, including single core wire, multi-core wire, etc. with different colors.
Packages
PVC insulated wire comes in drums or coils.
As a professional PVC insulated wire manufacturer and supplier in China, we provide a comprehensive range of cables that includes aerial bundled cable, XLPE insulated power cable, rubber sheathed flexible cable, and more. In addition, we also offer a wide selection of bare conductors such as all aluminium alloy conductor, ACSR, and aluminium conductor aluminium clad steel reinforced.
