0.6/1 kV NA2XRY Cable (AL/XLPE/SWA/PVC)

0.6/1 kV NA2XRY Cable (AL/XLPE/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

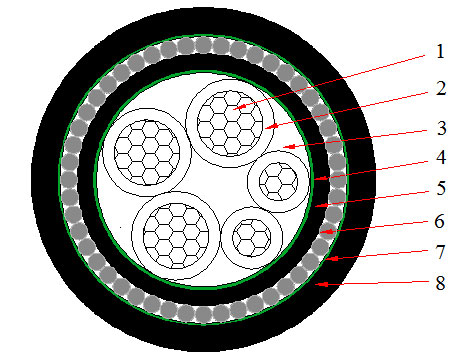

    0.6/1kV-3+2 Core Aluminum Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X4+2X2.5 0.7/0.7 1.25 1.8 18.6 597 7.41/12.1 20 28
    3X6+2X4 0.7/0.7 1.25 1.8 20 680 4.61/7.41 27 36
    3X10+2X6 0.7/0.7 1.25 1.8 22.5 846 3.08/4.61 35 46
    3X16+2X10 0.7/0.7 1.6 1.8 26.5 1205 1.91/3.08 46 60
    3X25+2X16 0.9/0.7 1.6 1.8 30.2 1523 1.2/1.91 61 77
    3X35+2X16 0.9/0.7 1.6 1.9 31.3 1666 0.868/1.91 74 91
    3X50+2X25 1/0.9 2 2.1 37 2415 0.641/1.2 91 112
    3X70+2X35 1.1/0.9 2 2.2 41.1 2897 0.443/0.868 116 137
    3X95+2X50 1.1/1.0 2 2.4 45.8 3527 0.32/0.641 144 165
    3X120+2X70 1.2/1.1 2.5 2.6 52.1 4745 0.253/0.443 168 186
    3X150+2X70 1.4/1.1 2.5 2.7 55.4 5238 0.206/0.443 189 210
    3X185+2X95 1.6/1.1 2.5 2.8 60.8 6238 0.164/0.32 221 238
    3X240+2X120 1.7/1.2 2.5 3 67.4 7495 0.125/0.253 263 277
    3X300+2X150 1.8/1.4 2.5 3.2 73.6 8767 0.1/0.206 305 312
