ACSS / Aluminum Conductor Steel Supported

All Aluminum Conductor Alloy Reinforced, Overhead Conductors

ACSS / Aluminum Conductor Steel Supported

Description

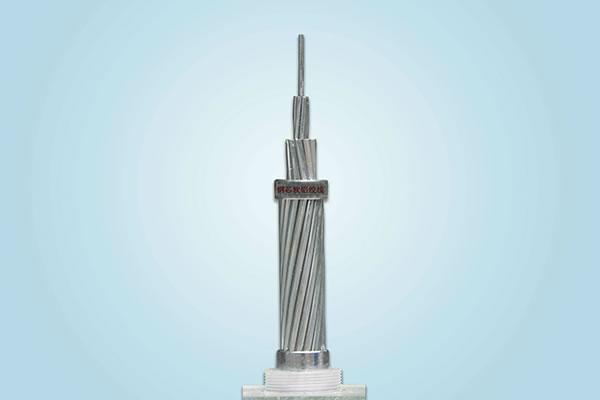

The aluminum conductor steel supported is a composite concentric-lay stranded cable. It is formed by the coating of one or more layers of aluminum alloy wires which are made of the 1000 series aluminum 1350-0 and the core cable which is made of steel. It is used in overhead distribution and transmission lines. The heat treatment of annealed tempering softens the aluminum coating, thus the steel carries most or all the mechanical load. The steel core may contain 7, 19, 37 or more wires. For the use in ordinary environment, class A zinc coating is usually adequate.

Features
  • The maximum temperature it can bear is as high as 200℃ without loss of strength.
  • Compared with ACSR, it sags less under emergency electrical loads. The reduced sag helps economize the conductor to the largest extend.
  • After being pre-stretched before installation, it gains excellent self-damping property, thus long term creep of the aluminum will not increase its final sag.

Applications
Because of these advantages, this steel supported aluminum conductor is useful in many aspects. Firstly, it is especially useful in re-conducting applications which requires increased current under the existing tensions and clearances. Secondly, it can be used in new wire connection applications where require high emergency power load. And thirdly, it is suitable to be used in electrical systems that are easily influenced by aeolian vibration.

Standards
ACSS conductors are manufactured according to the requirements of the most recently applicable issues in ASTM specification B856.

Aluminum Conductor Steel Supported ASTM B856
Code Word Size (kcmil) Stranding
(Al/St) 		Diameter (mm) Weight kg/km Rated Strength (kN) Resistance Ω/km
Al Wire Steel Wire Steel Core Complete Conductor Al Steel Total Standard Strength High Strength DC @ 20°C AC @ 75°C
Partridge/ACSS 266.8 26/7 2.57 2.00 6.00 16.31 374 172 546 39.50 43.28 0.2063 0.2537
Junco/ACSS 266.8 30/7 2.40 2.40 7.19 16.76 375 246 621 52.04 57.83 0.2050 0.2520
Ostrich/ACSS 300 26/7 2.73 2.12 6.37 17.27 421 193 614 44.48 48.49 0.1837 0.2257
Linnet/ACSS 336.4 26/7 2.89 2.25 6.74 18.29 471 217 688 49.82 54.71 0.1637 0.2013
Oriole/ACSS 336.4 30/7 2.69 2.69 8.07 18.82 473 311 783 65.83 72.51 0.1627 0.2000
Brant/ACSS 397.5 24/7 3.27 2.18 6.54 19.61 557 204 761 48.93 53.82 0.1390 0.1713
Ibis/ACSS 397.5 26/7 3.14 2.44 7.33 19.89 557 256 813 57.83 63.16 0.1387 0.1707
Lark/ACSS 397.5 30/7 2.92 2.92 8.77 20.47 558 367 925 77.84 85.85 0.1377 0.1693
Flicker/ACSS 477 24/7 3.58 2.39 7.16 21.49 669 245 913 57.83 63.16 0.1160 0.1430
Hawk/ACSS 477 26/7 3.44 2.67 8.03 21.79 669 307 976 69.39 76.06 0.1153 0.1423
Hen/ACSS 477 30/7 3.20 3.20 9.61 22.43 670 440 1110 93.41 100.97 0.1147 0.1413
Parakeet/ACSS 556.5 24/7 3.87 2.58 7.73 23.22 780 285 1065 67.61 73.84 0.0993 0.1227
Dove/ACSS 556.5 26/7 3.72 2.89 8.67 23.55 780 358 1138 80.96 88.52 0.0990 0.1220
Eagle/ACSS 556.5 30/7 3.46 3.46 10.38 24.21 782 514 1295 108.98 117.88 0.0983 0.1210
Peacock/ACSS 605 24/7 4.03 2.69 8.06 24.21 848 310 1158 73.40 80.51 0.0913 0.1130
Squab/ACSS 605 26/7 3.87 3.01 9.04 24.54 848 390 1238 87.63 94.75 0.0910 0.1123
Wood Duck/ACSS 605 30/7 3.61 3.61 10.82 25.25 850 558 1408 115.65 125.88 0.0903 0.1113
Teal/ACSS 605 30/19 3.61 2.16 10.82 25.25 850 547 1397 118.32 130.33 0.0907 0.1117
Rook/ACSS 636 24/7 4.14 2.76 8.27 24.82 891 326 1217 76.95 84.52 0.0870 0.1073
Grosbeak/ACSS 636 26/7 3.97 3.09 9.27 25.17 891 410 1301 92.08 99.64 0.0867 0.1070
Scoter/ACSS 636 30/7 3.70 3.70 11.09 25.88 894 587 1481 121.88 132.11 0.0860 0.1060
Egret/ACSS 636 30/19 3.70 2.22 11.09 25.88 894 575 1468 124.55 137.45 0.0860 0.1063
Flamingo/ACSS 666.6 24/7 4.23 2.82 8.47 25.40 934 342 1276 80.96 88.52 0.0830 0.1027
Gannet/ACSS 666.6 26/7 4.07 3.16 9.49 25.76 934 429 1364 96.53 104.09 0.0827 0.1020
Stilt/ACSS 715.5 24/7 4.39 2.92 8.77 26.31 1003 367 1370 86.74 94.75 0.0773 0.0957
Starling/ACSS 715.5 26/7 4.21 3.28 9.83 26.70 1003 461 1464 103.64 112.10 0.0770 0.0953
Redwing/ACSS 715.5 30/19 3.92 2.35 11.77 27.46 1005 647 1652 137.01 151.24 0.0767 0.0947
Cuckoo/ACSS 795 24/7 4.62 3.08 9.25 27.74 1114 408 1522 96.53 103.64 0.0697 0.0863
Drake/ACSS 795 26/7 4.44 3.45 10.36 28.12 1114 512 1626 115.21 124.55 0.0697 0.0857
Macaw/ACSS 795 42/7 3.50 1.94 5.82 26.80 1114 162 1276 52.49 56.05 0.0703 0.0873
Tern/ACSS 795 45/7 3.38 2.25 6.75 27.00 1114 217 1332 63.16 67.61 0.0700 0.0877
Condor/ACSS 795 54/7 3.08 3.08 9.25 27.74 1114 408 1522 96.53 103.64 0.0697 0.0887
Mallard/ACSS 795 30/19 4.14 2.48 12.41 28.93 1117 718 1835 152.57 168.59 0.0690 0.0850
Ruddy/ACSS 900 45/7 3.59 2.40 7.18 28.73 1261 246 1507 70.28 75.62 0.0620 0.0777
Canary/ACSS 900 54/7 3.28 3.28 9.84 29.51 1261 461 1723 109.43 117.43 0.0613 0.0787
Redbird/ACSS 954 24/7 5.06 3.38 10.13 30.38 1337 489 1826 115.65 124.55 0.0580 0.0723
Rail/ACSS 954 45/7 3.70 2.47 7.40 29.59 1337 261 1598 74.29 80.07 0.0583 0.0733
Towhee/ACSS 954 48/7 3.58 2.79 8.36 29.85 1337 333 1670 87.63 94.75 0.0583 0.0727
Cardinal/ACSS 954 54/7 3.38 3.38 10.13 30.38 1337 489 1826 115.65 124.55 0.0580 0.0743
Canvasback/ACSS 954 30/19 4.53 2.72 13.59 31.70 1340 862 2202 182.82 201.95 0.0573 0.0713
Snowbird/ACSS 1033.5 42/7 3.99 2.21 6.64 30.56 1448 210 1659 68.50 73.40 0.0540 0.0680
Ortolan/ACSS 1033.5 45/7 3.85 2.57 7.70 30.78 1448 283 1731 80.51 86.74 0.0540 0.0680
Curlew/ACSS 1033.5 54/7 3.51 3.51 10.54 31.62 1448 530 1978 125.44 134.78 0.0537 0.0687
Bluejay/ACSS 1113 45/7 4.00 2.66 7.99 31.95 1560 304 1864 86.74 93.86 0.0500 0.0633
Finch/ACSS 1113 54/19 3.65 2.19 10.94 32.82 1567 559 2126 135.23 147.68 0.0500 0.0643
Bunting/ACSS 1192.5 45/7 4.14 2.76 8.27 33.07 1671 326 1997 95.19 104.53 0.0467 0.0593
Bittern/ACSS 1272 45/7 4.27 2.85 8.54 34.16 1783 348 2131 99.20 106.76 0.0437 0.0557
Pheasant/ACSS 1272 54/19 3.90 2.34 11.69 35.08 1791 639 2430 151.68 165.92 0.0437 0.0563
Dipper/ACSS 1351 45/7 4.40 2.93 8.80 35.20 1893 369 2263 105.42 113.43 0.0413 0.0527
Martin/ACSS 1351 54/19 4.02 2.41 12.05 36.17 1903 678 2581 161.03 176.15 0.0410 0.0533
Bobolink/ACSS 1431 45/7 4.53 3.02 9.06 36.25 2006 391 2397 111.65 120.10 0.0390 0.0500
Plover/ACSS 1431 54/19 4.14 2.48 12.41 37.21 2015 718 2734 170.81 186.38 0.0390 0.0503
Nuthatch/ACSS 1510 45/7 4.65 3.10 9.31 37.21 2116 413 2529 117.88 125.00 0.0370 0.0477
Parrot/ACSS 1510 54/19 4.25 2.55 12.74 38.23 2127 758 2885 179.71 196.61 0.0367 0.0480
Ratite/ACSS 1590 42/7 4.94 2.75 8.24 37.90 2228 323 2552 104.09 111.21 0.0350 0.0453
Lapwing/ACSS 1590 45/7 4.78 3.18 9.55 38.20 2228 435 2663 124.11 131.67 0.0350 0.0453
Falcon/ACSS 1590 54/19 4.36 2.62 13.08 39.22 2239 798 3038 189.49 207.29 0.0350 0.0457
Chukar/ACSS 1780 84/19 3.70 2.22 11.09 40.67 2507 575 3081 157.47 169.92 0.0313 0.0407
Mockingbird/ACSS 2034.5 72/7 4.27 2.85 8.54 42.70 2865 348 3213 120.99 128.55 0.0277 0.0367
Roadrunner/ACSS 2057 76/19 4.18 1.95 9.75 43.18 2897 444 3341 141.01 150.79 0.0273 0.0360
Bluebird/ACSS 2156 84/19 4.07 2.44 12.21 44.75 3036 696 3732 187.27 202.39 0.0260 0.0343
Kiwi/ACSS 2167 72/7 4.41 2.94 8.81 44.07 3052 370 3422 129.00 137.01 0.0260 0.0347
Thrasher/ACSS 2312 76/19 4.43 2.07 10.34 45.77 3256 499 3755 158.36 169.48 0.0243 0.0327
Joree/ACSS 2515 76/19 4.62 2.16 10.78 47.75 3542 543 4085 172.15 184.16 0.0223 0.0307
