Copper Clad Steel Wire
Overhead Conductors, Copperhead Wire
Applications

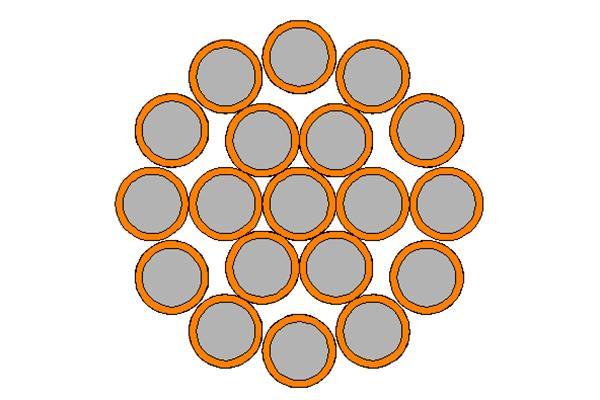

Copper clad steel wire is composed of stranded copper clad monofilament, widely applied for grounding and lightning protection, electrostatic grounding protection, protective grounding, grounding wire of electrical and petrochemical system in areas covering high-frequency coaxial cable, electrified railway, metro, railways, airport, network communication etc. These wire and cables are available in 30% and 40% electric productivity based on different copper thickness.
Executive standard
ASTM B228
| Model | Nominal area | Wire quantity | Outer diameter | Weight/km | Pulling strength | 20℃ Max resistance | ||||||
| | mm2 | | Monofilament | Conductor | Grade 30 | Grade 40 | Grade 40 LC | Grade 30 LC | Grade 40 HS | Grade 30 HS | Grade 40 | Grade 30 |
| mm | mm | Kg/km | kgf | Ω/km | ||||||||
| 19 No.5 | 318.7 | 19 | 4.62 | 23.11 | 2634 | 2660.8 | 7823 | 8800 | 8800 | 9778 | 0.1442 | 0.1923 |
| 19 No.6 | 252.7 | 19 | 4.11 | 20.57 | 2087.8 | 2110.2 | 6205 | 6980 | 6980 | 7756 | 0.1818 | 0.2424 |
| 19 No.7 | 200.45 | 19 | 3.66 | 18.31 | 1656.3 | 1674.1 | 4923 | 5538 | 5538 | 6154 | 0.2294 | 0.3058 |
| 19 No. 8 | 158.96 | 19 | 3.26 | 16.31 | 1313.6 | 1327.4 | 3904 | 4392 | 4392 | 4880 | 0.289 | 0.3852 |
| 19 No. 9 | 126.06 | 19 | 2.91 | 14.53 | 1041.7 | 1052.5 | 3094 | 3481 | 3481 | 3868 | 0.3645 | 0.4862 |
| 7 No. 4 | 148.06 | 7 | 5.19 | 15.57 | 1218.6 | 1231.4 | 3636 | 4090 | 4090 | 4544 | 0.3093 | 0.4124 |
| 7 No. 5 | 117.41 | 7 | 4.62 | 13.87 | 966.4 | 976.5 | 2882 | 3242 | 3242 | 3603 | 0.3898 | 0.5197 |
| 7 No. 6 | 93.09 | 7 | 4.11 | 12.34 | 766.2 | 774.2 | 2286 | 2572 | 2572 | 2857 | 0.4915 | 0.6552 |
| 7 No.7 | 73.87 | 7 | 3.67 | 11 | 608 | 614.4 | 1814 | 2040 | 2040 | 2267 | 0.6201 | 0.8268 |
| 7 No. 8 | 58.56 | 7 | 3.26 | 9.78 | 482 | 487 | 1438 | 1618 | 1618 | 1798 | 0.7812 | 1.0414 |
| 7 No. 9 | 46.43 | 7 | 2.9 | 8.71 | 382.1 | 386.1 | 1140 | 1282 | 1282 | 1425 | 0.9859 | 1.3144 |
| 7 No. 10 | 36.82 | 7 | 2.59 | 7.77 | 303.1 | 306.2 | 904 | 1017 | 1017 | 1131 | 1.2422 | 1.6559 |
| 3 No. 5 | 50.32 | 3 | 4.62 | 9.96 | 413.4 | 417.7 | 1304 | 1467 | 1467 | 1630 | 0.9082 | 1.2104 |
| 3 No. 6 | 39.9 | 3 | 4.11 | 8.86 | 327.8 | 331.2 | 1034 | 1163 | 1163 | 1293 | 1.1447 | 1.526 |
| 3 No. 7 | 31.64 | 3 | 3.66 | 7.9 | 259.9 | 262.6 | 820 | 923 | 923 | 1026 | 1.444 | 1.925 |
| 3 N0. 8 | 25.09 | 3 | 3.26 | 7.04 | 206.1 | 208.3 | 651 | 732 | 732 | 813 | 1.8193 | 2.4253 |
| 3 No. 9 | 19.9 | 3 | 2.91 | 6.27 | 163.5 | 165.1 | 516 | 580 | 580 | 645 | 2.2957 | 3.0605 |
| 3 No. 10 | 15.78 | 3 | 2.59 | 5.59 | 129.6 | 130.9 | 409 | 460 | 460 | 511 | 2.8929 | 3.8552 |
| 3 No. 12 | 9.92 | 3 | 2.05 | 4.42 | 81.5 | 82.4 | 260 | 292 | 292 | 325 | 4.5573 | 6.0731 |
