2-Layer 15kV Tree Wire
Construction

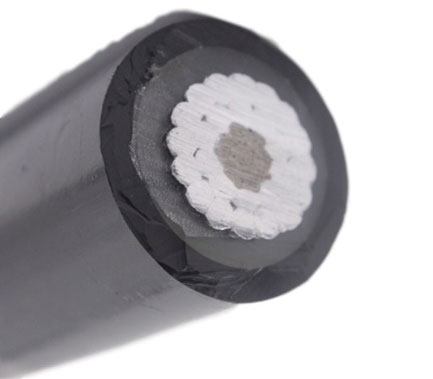

The tree wire is designed with concentrically stranded conductors - AAC (1350-H19) which are either compressed or compact depending on conductor size, available with AAAC or ACSR. The conductors can be covered with high-density track-resistant Polyethylene (HDTRPE) or track-resistant crosslinked Polyethylene (XLPE) insulation to meet different applications.
Application
The tree wire is used for primary and secondary overhead distribution where limited space is available or desired for rights-of-way. Installed the same as bare conductors, however, covering is effective in preventing direct shorts and instantaneous flashovers with other objects.
The close-proximity configuration minimizes the amount of space and hardware required for line installation, making it particularly useful in congested areas such as alleyways or tight corridors.
Specifications
15kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:
- ASTM B230
- ASTM B231
- ASTM B232
- ASTM B398
- ASTM B399
- ASTM B400
ICEA S121-733
2-Layer tree wire
| 2-Layer 15kV Tree Wire | ||||||||
| Conductor | Size | Stranding | Conductor Diameter | Covering Thickness （mils) | Cable O.D. | Rated Strength | Weight per 1000 ft. | |
| ACSR | (AWG or kcmil) | / | (mils) | Inner Layer | Outer Layer | (mils) | (lbs) | (lbs) |
| 4 | 6/1 | 250 | 75 | 75 | 550 | 1767 | 136 | |
| 2 | 6/1 | 316 | 75 | 75 | 616 | 2708 | 184 | |
| 1/0 | 6/1 | 398 | 75 | 75 | 698 | 4161 | 255 | |
| 2/0 | 6/1 | 447 | 75 | 75 | 747 | 5045 | 303 | |
| 3/0 | 6/1 | 502 | 75 | 75 | 802 | 6289 | 362 | |
| 4/0 | 6/1 | 563 | 75 | 75 | 863 | 7933 | 432 | |
| 266.8 | 18/1 | 609 | 75 | 75 | 909 | 6536 | 441 | |
| 266.8 | 26/7 | 642 | 75 | 75 | 942 | 10735 | 452 | |
| 336.4 | 18/1 | 684 | 75 | 75 | 984 | 8246 | 536 | |
| 336.4 | 26/7 | 720 | 75 | 75 | 1020 | 13395 | 555 | |
| 336.4 | 30/7 | 741 | 75 | 75 | 1041 | 16435 | 621 | |
| 397.5 | 18/1 | 743 | 75 | 75 | 1043 | 9443 | 611 | |
| 397.5 | 24/7 | 772 | 75 | 75 | 1072 | 13870 | 609 | |
| 397.5 | 26/7 | 783 | 75 | 75 | 1083 | 1545 | 645 | |
| 477 | 24/7 | 846 | 75 | 75 | 1146 | 16340 | 719 | |
| 477 | 26/7 | 858 | 75 | 75 | 1158 | 18525 | 762 | |
| 477 | 30/7 | 883 | 75 | 75 | 1183 | 22610 | 854 | |
| 556.5 | 18/1 | 879 | 75 | 75 | 1179 | 13015 | 813 | |
| 556.5 | 24/7 | 914 | 75 | 75 | 1214 | 18810 | 828 | |
| 556.5 | 26/7 | 927 | 75 | 75 | 1227 | 21470 | 878 | |
| 636 | 18/1 | 940 | 75 | 75 | 1240 | 14915 | 912 | |
| 636 | 24/7 | 977 | 75 | 75 | 1277 | 20900 | 936 | |
| 636 | 26/7 | 990 | 75 | 75 | 1290 | 23940 | 993 | |
| 795 | 26/7 | 1108 | 80 | 75 | 1428 | 29925 | 1234 | |
| 795 | 45/7 | 1063 | 80 | 80 | 1383 | 20995 | 1031 | |
| 48.69 | 7 | 250 | 75 | 75 | 550 | 1584 | 124 | |
| 77.47 | 7 | 316 | 75 | 75 | 616 | 2520 | 165 | |
| 123.3 | 7 | 398 | 75 | 75 | 698 | 4014 | 225 | |
| 155.4 | 7 | 447 | 75 | 75 | 747 | 4851 | 265 | |
| 195.7 | 7 | 502 | 75 | 75 | 802 | 6111 | 314 | |
| 246.9 | 7 | 563 | 75 | 75 | 863 | 7704 | 376 | |
| 312.8 | 19 | 642 | 75 | 75 | 942 | 9900 | 450 | |
| 394.5 | 19 | 720 | 75 | 75 | 1020 | 11970 | 543 | |
| 465.4 | 19 | 782 | 75 | 75 | 1082 | 14040 | 623 | |
| 559.5 | 19 | 858 | 75 | 75 | 1158 | 16920 | 727 | |
| 652.4 | 19 | 927 | 75 | 75 | 1227 | 19710 | 828 | |
| 740.8 | 37 | 990 | 80 | 80 | 1310 | 21960 | 938 | |
| AAC | 1/0 | 7 | 336 | 75 | 75 | 636 | 1791 | 196 |
| 2/0 | 7 | 376 | 75 | 75 | 676 | 2259 | 230 | |
| 3/0 | 7 | 423 | 75 | 75 | 723 | 2736 | 272 | |
| 4/0 | 7 | 475 | 75 | 75 | 775 | 3447 | 325 | |
| 266.8 | 19 | 537 | 75 | 75 | 837 | 4473 | 387 | |
| 336.4 | 19 | 603 | 75 | 75 | 903 | 5535 | 466 | |
| 397.5 | 19 | 659 | 75 | 75 | 959 | 6399 | 535 | |
| 477 | 19 | 722 | 75 | 75 | 1022 | 7524 | 623 | |
| 556.5 | 37 | 780 | 75 | 75 | 1080 | 8946 | 708 | |
| 636 | 37 | 835 | 75 | 75 | 1135 | 10260 | 794 | |
