3-Layer 46kV Tree Wire

3-Layer 46kV Tree Wire

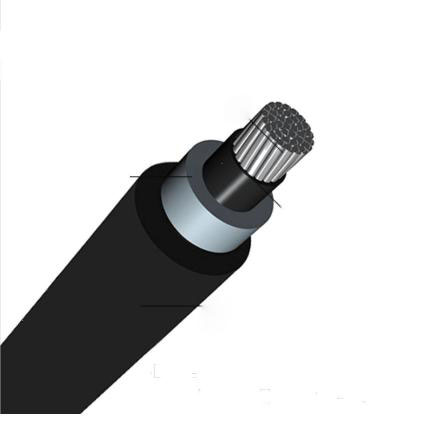

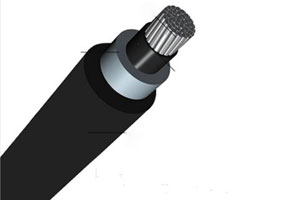

Construction
The tree wire is designed with concentrically stranded conductors - AAC (1350-H19) which are either compressed or compact depending on conductor size, available with AAAC or ACSR. The conductors can be covered with high-density track-resistant Polyethylene (HDTRPE) or track-resistant crosslinked Polyethylene (XLPE) insulation to meet different applications.

Application
The tree wire is used for primary and secondary overhead distribution where limited space is available or desired for rights-of-way. Installed the same as bare conductors, however, covering is effective in preventing direct shorts and instantaneous flashovers with other objects.
The close-proximity configuration minimizes the amount of space and hardware required for line installation, making it particularly useful in congested areas such as alleyways or tight corridors.

Specifications
46kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications:

  • ASTM B230
  • ASTM B231
  • ASTM B232
  • ASTM B398
  • ASTM B399
  • ASTM B400
  • ICEA S121-733ICEA S121-733
  • 3 Layer tree wire3 Layer tree wire
Parameters
3-Layer 46kV Tree Wire
Conductor Size Stranding Conductor Diameter Covering Thickness
(mils) 		Cable O.D. Rated Strength Weight per 1000 ft.
(AWG or kcmil) / (mils) Conductor Shield Inner Layer Outer Layer (mils) (lbs) (lbs)
ACSR 1/0 6/1 398 15 225 175 1244 4161 2040
2/0 6/1 447 15 225 175 1293 5045 2257
4/0 6/1 563 15 225 175 1409 7933 2836
266.8 18/1 609 15 225 175 1455 6536 2914
266.8 26/7 642 15 225 175 1488 10735 3228
336.4 18/1 684 15 225 175 1530 8246 3306
336.4 26/7 720 15 225 175 1566 13395 3695
336.4 30/7 741 15 225 175 1587 16435 3941
397.5 18/1 743 15 225 175 1589 9443 3635
397.5 24/7 772 15 225 175 1618 13870 3953
397.5 26/7 783 15 225 175 1629 15485 4087
477 24/7 846 20 225 175 1692 16340 4123
477 26/7 858 20 225 175 1704 18525 4452
477 30/7 883 20 225 175 1729 22610 4635
556.5 18/1 879 20 225 175 1725 13015 4469
556.5 24/7 914 20 225 175 1760 18810 4897
556.5 26/7 927 20 225 175 1773 21470 5084
636 18/1 940 20 225 175 1786 14915 4870
636 26/7 990 20 225 175 1836 23940 5557
795 26/7 1107 20 225 175 1953 29925 6495
795 45/7 1063 20 225 175 1909 20995 5769
AAAC 48.69 7 250 15 225 175 1096 1584 1460
77.47 7 316 15 225 175 1162 2520 1677
123.3 7 398 15 225 175 1244 4014 1976
155.4 7 447 15 225 175 1293 4851 2169
195.7 7 502 15 225 175 1348 6111 2399
246.9 7 563 15 225 175 1409 7704 2674
312.8 19 642 15 225 175 1488 9900 3028
394.5 19 720 15 225 175 1566 11970 3428
465.4 19 720 15 225 175 1566 14040 3642
559.5 19 858 20 225 175 1704 16920 4197
652.4 19 927 20 225 175 1773 19710 4613
AAC 1/0 7 336 15 175 125 1182 1791 1801
2/0 7 376 15 175 125 1222 2259 1963
3/0 7 423 15 175 125 1269 2736 2160
4/0 7 475 15 175 125 1321 3447 2394
266.8 19 537 15 175 125 1383 4473 2683
336.4 19 603 15 175 125 1449 5535 3023
397.5 19 659 15 175 125 1505 6399 3317
477 19 722 20 175 125 1568 7524 3681
556.5 37 780 20 175 125 1626 8946 4035
636 37 835 20 175 125 1681 10260 4383
795 37 932 20 175 125 1778 12510 5054
