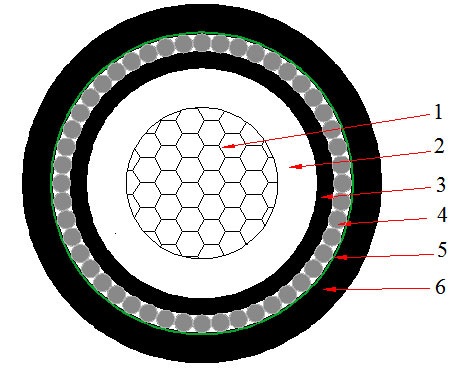

    0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    1X10 1 0.8 1.8 13.8 316 3.08 39 53
    1X16 1 0.8 1.8 14.9 375 1.91 50 68
    1X25 1.2 0.8 1.8 16.6 454 1.2 66 88
    1X35 1.2 1.25 1.8 18.1 625 0.868 81 105
    1X50 1.4 1.25 1.8 19.8 737 0.641 98 123
    1X70 1.4 1.25 1.8 21.4 863 0.443 126 151
    1X95 1.6 1.6 1.8 24.1 1164 0.32 154 182
    1X120 1.6 1.6 1.8 25.5 1295 0.253 182 207
    1X150 1.8 1.6 1.8 27.5 1494 0.206 210 235
    1X185 2 1.6 1.8 29.6 1719 0.164 245 266
    1X240 2.2 1.6 1.9 32.4 2042 0.125 290 312
    1x300 2.4 2 2 36 2637 0.1 340 354
    1x400 2.6 2 2.2 40 3177 0.0778 399 403
    1x500 2.8 2 2.3 44.2 3787 0.0605 469 466
    1X630 2.8 2.5 2.4 48.9 4839 0.0469 553 532
    1X800 2.8 2.5 2.6 53.2 5689 0.0367 644 613
