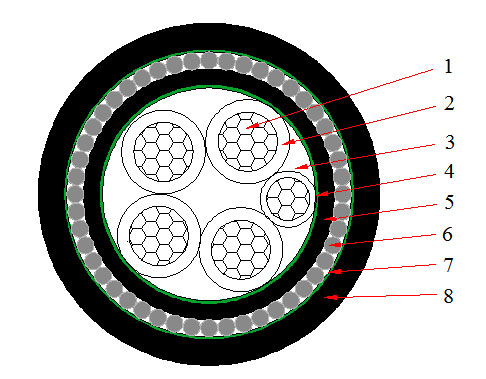

Nominal cross sectional area | Insulation thickness | Steel Wire diameter | Sheath thickness | Approximate outer diameter | Approx. weight | Max.D.C resistance of conductor(20℃) | Current carrying capacity | |
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
4X4+1X2.5 | 1.0/0.8 | 1.25 | 1.8 | 20.3 | 707 | 7.41/12.1 | 20 | 28 |
4X6+1X4 | 1.0/1.0 | 1.25 | 1.8 | 21.9 | 815 | 4.61/7.41 | 27 | 36 |
4X10+1X6 | 1.0/1.0 | 1.6 | 1.8 | 25.5 | 1147 | 3.08/4.61 | 35 | 46 |
4X16+1X10 | 1.0/1.0 | 1.6 | 1.8 | 28.6 | 1405 | 1.91/3.08 | 46 | 60 |
4X25+1X16 | 1.2/1.0 | 1.6 | 1.9 | 33 | 1803 | 1.2/1.91 | 61 | 77 |
4X35+1X16 | 1.2/1.0 | 2 | 2 | 35.4 | 2256 | 0.868/1.91 | 74 | 91 |
4X50+1X25 | 1.4/1.2 | 2 | 2.2 | 40.7 | 2854 | 0.641/1.2 | 91 | 112 |
4X70+1X35 | 1.4/1.4 | 2 | 2.3 | 44.7 | 3405 | 0.443/0.868 | 116 | 137 |
4X95+1X50 | 1.6/1.4 | 2.5 | 2.6 | 52.1 | 4800 | 0.32/0.641 | 144 | 165 |
4X120+1X70 | 1.6/1.4 | 2.5 | 2.7 | 56.2 | 5486 | 0.253/0.443 | 168 | 186 |
4X150+1X70 | 1.8/1.4 | 2.5 | 2.8 | 60.6 | 6223 | 0.206/0.443 | 189 | 210 |
4X185+1X95 | 2.0/1.6 | 2.5 | 3 | 66.8 | 7469 | 0.164/0.32 | 221 | 238 |
4X240+1X120 | 2.2/1.6 | 2.5 | 3.2 | 73.9 | 89662 | 0.125/0.253 | 263 | 277 |
4X300+1X150 | 2.4/1.8 | 3.15 | 3.5 | 82.5 | 11606 | 0.1/0.206 | 305 | 312 |
