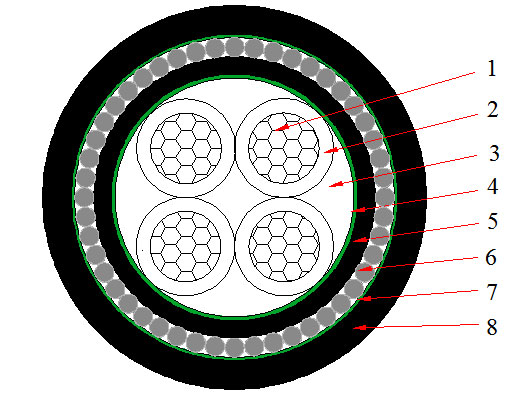

    0.6/1kV-4 Core Aluminum Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X2.5 0.8 1.25 1.8 17.5 558 12.1 15 22
    4X4 1 1.25 1.8 19.5 665 7.41 20 28
    4X6 1 1.25 1.8 20.8 750 4.61 27 36
    4X10 1 1.6 1.8 24.5 1085 3.08 35 46
    4X16 1 1.6 1.8 27.1 1312 1.91 46 60
    4X25 1.2 1.6 1.9 31.3 1655 1.2 61 77
    4X35 1.2 1.6 2 33 1874 0.868 74 91
    4X50 1.4 1.6 2.1 37.8 2370 0.641 91 112
    4X70 1.4 2 2.3 42.8 3162 0.443 116 137
    4X95 1.6 2.5 2.5 49.3 4340 0.32 144 165
    4X120 1.6 2.5 2.6 53.3 5030 0.253 168 186
    4X150 1.8 2.5 2.7 58.2 5896 0.206 189 210
    4X185 2 2.5 2.9 63.8 6901 0.164 221 238
    4X240 2.2 2.5 3.1 70.7 8315 0.125 263 277
    4X300 2.4 3.15 3.4 78.6 10695 0.1 305 312
