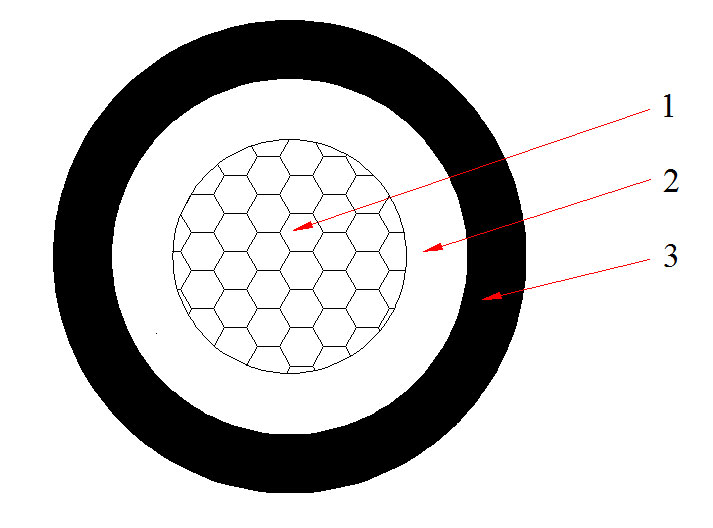

    0.6/1kV-1 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    1X10 1.0 1.4 8.6 97 3.08 42 65
    1X16 1.0 1.4 9.6 125 1.91 58 85
    1X25 1.2 1.4 11.2 171 1.2 74 105
    1X35 1.2 1.4 12.2 206 0.868 90 125
    1X50 1.4 1.4 13.6 265 0.641 110 150
    1X70 1.4 1.4 15.5 343 0.443 140 185
    1X95 1.6 1.5 17.7 453 0.32 170 225
    1X120 1.6 1.5 19.1 545 0.253 200 255
    1X150 1.8 1.6 21 675 0.206 230 285
    1X185 2.0 1.7 23.3 821 0.164 265 323
    1X240 2.2 1.8 26.2 1044 0.125 320 380
    1X300 2.4 1.9 29 1284 0.1 370 430
    1X400 2.6 2 32.3 1638 0.0778 435 490
    1X500 2.8 2.1 36.2 2063 0.0605 510 565
    1X630 2.8 2.2 40 2515 0.0469 600 655
