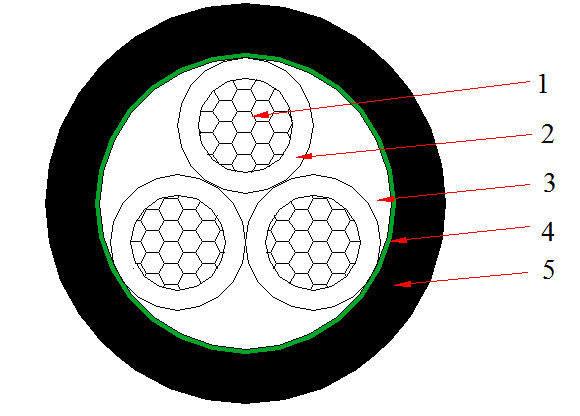

    0.6/1kV-3 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    3X2.5 0.8 1.8 11.4 137 12.1 17 -
    3X4 1.0 1.8 13.3 188 7.41 22 -
    3X6 1.0 1.8 14.5 224 4.61 29 -
    3X10 1.0 1.8 17.1 307 3.08 38 55
    3X16 1.0 1.8 19.5 403 1.91 51 73
    3X25 1.2 1.8 23.1 559 1.2 65 94
    3X35 1.2 1.8 24.5 673 0.868 80 110
    3X50 1.4 1.8 28.2 882 0.641 98 135
    3X70 1.4 1.9 31.8 1150 0.443 120 165
    3X95 1.6 2.1 36.6 1538 0.32 150 200
    3X120 1.6 2.2 39.9 1855 0.253 180 230
    3X150 1.8 2.3 44.2 2301 0.206 200 255
    3X185 2 2.5 48.8 2810 0.164 235 290
    3X240 2.2 2.7 55.0 3597 0.125 280 335
    3X300 2.4 2.8 60.8 4428 0.1 320 375
