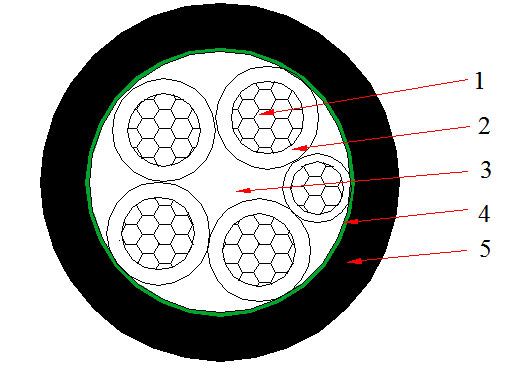

    0.6/1kV-4+1core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4*4+1*2.5 1.0/0.8 1.8 15.2 249 7.41/12.1 29 -
    4*6+1*4 1.0/1.0 1.8 16.8 309 4.61/7.41 38 -
    4*10+1*6 1.0/1.0 1.8 19.7 420 3.08/4.61 51 55
    4*16+1*10 1.0/1.0 1.8 22.8 563 1.91/3.08 65 73
    4*25+1*16 1.2/1.0 1.8 27.0 792 1.2/1.91 80 94
    4*35+1*16 1.2/1.0 1.8 28.4 932 0.868/1.91 98 110
    4*50+1*25 1.4/1.2 2.0 33.2 1282 0.641/1.2 120 135
    4*70+1*35 1.4/1.2 2.1 37.3 1648 0.443/0.868 150 165
    4*95+1*50 1.6/1.4 2.3 43.1 2245 0.32/0.641 180 200
    4*120+1*70 1.6/1.4 2.4 47.3 2731 0.253/0.443 200 230
    4*150+1*70 1.8/1.4 2.5 51.6 3229 0.206/0.443 235 255
    4*185+1*95 2.0/1.6 2.7 57.5 4042 0.164/0.32 280 290
    4*240+1*120 2.2/1.6 3.0 64.5 5143 0.125/0.253 320 335
    4*300+1*150 2.4/1.8 3.2 71.4 6342 0.1/0.206 380 375
