0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

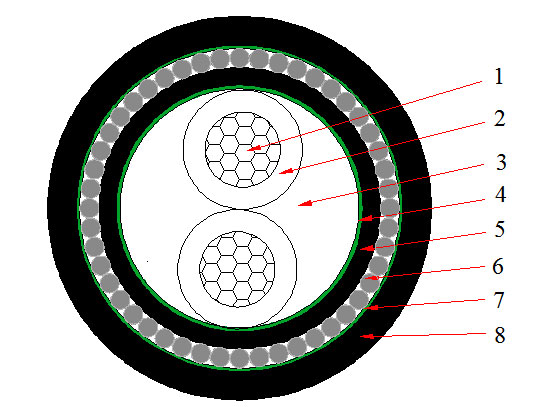

    0.6/1kV-2 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    2X2.5 0.8 0.8 1.8 15.2 388 7.41 18 25
    2X4 1 0.8 1.8 17.8 601 4.61 24 33
    2X6 1 1.25 1.8 18.8 680 3.08 32 43
    2X10 1 1.25 1.8 21.3 871 1.83 41 55
    2X16 1 1.25 1.8 23.5 1095 1.15 53 70
    2X25 1.2 1.6 1.8 27.5 1573 0.727 70 91
    2X35 1.2 1.6 1.8 28.8 1840 0.524 84 109
    2X50 1.4 1.6 1.9 32.5 2287 0.387 105 130
    2X70 1.4 2 2 36.7 3136 0.268 133 158
    2X95 1.6 2 2.1 41.6 3995 0.193 165 193
    2X120 1.6 2 2.3 44.6 4676 0.153 193 221
    2X150 1.8 2.5 2.4 49.8 6025 0.124 221 245
    2X185 2 2.5 2.6 54.4 7125 0.0991 256 277
