0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

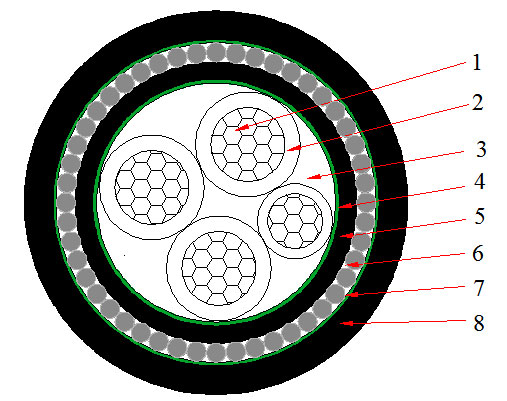

    0.6/1kV-3+1 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X4+1X2.5 1.0/0.8 1.25 1.8 19 923 4.61/7.41 20 28
    3X6+1X4 1.0/1.0 1.25 1.8 20.5 868 3.08/4.61 27 36
    3X10+1X6 1.0/1.0 1.6 1.8 23.8 1245 1.83/3.08 35 46
    3X16+1X10 1.0/1.0 1.6 1.8 26.5 1595 1.15/1.83 46 60
    3X25+1X16 1.2/1.0 1.6 1.8 30.3 2124 0.727/1.15 61 77
    3X35+1X16 1.2/1.0 1.6 1.9 31.6 2475 0.524/1.15 74 91
    3X50+1X25 1.4/1.2 2 2.1 36.9 3435 0.387/0.727 91 112
    3X70+1X35 1.4/1.4 2 2.2 40.7 4360 0.268/0.524 116 137
    3X95+1X50 1.6/1.4 2 2.4 45.7 5578 0.193/0.387 144 165
    3X120+1X70 1.6/1.4 2.5 2.5 51.1 7221 0.153/0.268 168 186
    3X150+1X70 1.8/1.4 2.5 2.6 54.8 8345 0.124/0.268 189 210
    3X185+1X95 2.0/1.6 2.5 2.8 60 10160 0.0991/0.193 221 238
    3X240+1X120 2.2/1.6 2.5 3 66.5 12585 0.0754/0.153 263 277
    3X300+1X150 2.4/1.8 3.15 3.2 77.7 15187 0.0601/0.124 305 312
