0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

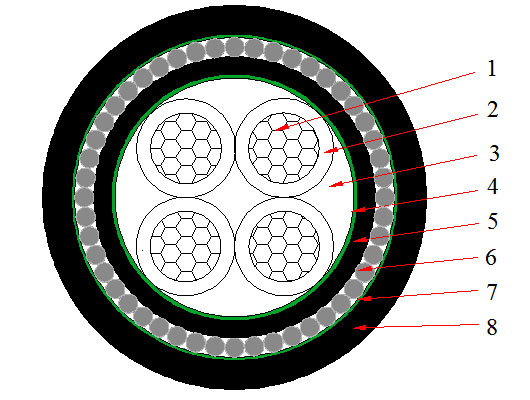

    0.6/1kV-4 Core Copper Conductor PVC Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X2.5 0.8 1.25 1.8 17.5 621 7.41 15 22
    4X4 1 1.25 1.8 19.5 766 4.61 20 28
    4X6 1 1.25 1.8 20.8 900 3.08 27 36
    4X10 1 1.6 1.8 24.5 1335 1.83 35 46
    4X16 1 1.6 1.8 27.1 1715 1.15 46 60
    4X25 1.2 1.6 1.9 31.3 2260 0.727 61 77
    4X35 1.2 1.6 2 33 2726 0.524 74 91
    4X50 1.4 1.6 2.1 37.8 3525 0.387 91 112
    4X70 1.4 2 2.3 42.8 4815 0.268 116 137
    4X95 1.6 2.5 2.5 49.3 6620 0.193 144 165
    4X120 1.6 2.5 2.6 53.3 7936 0.153 168 186
    4X150 1.8 2.5 2.7 58.2 9553 0.124 189 210
    4X185 2 2.5 2.9 63.8 11409 0.0991 221 238
    4X240 2.2 2.5 3.1 70.7 14226 0.0754 263 277
    4X300 2.4 3.15 3.4 78.6 18107 0.0601 305 312
