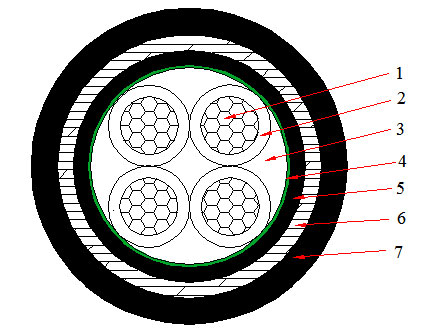

    0.6/1kV-4 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X2.5 0.7 0.2 1.8 14.7 308 7.41 - 35
    4X4 0.7 0.2 1.8 15.8 388 4.61 - 50
    4X6 0.7 0.2 1.8 17.0 488 3.08 - 60
    4X10 0.7 0.2 1.8 20.0 681 1.83 64 85
    4X16 0.9 0.2 1.8 22.7 960 1.15 83 110
    4X25 0.9 0.2 1.8 26.7 1375 0.727 110 140
    4X35 0.9 0.2 1.8 28.3 1779 0.524 135 170
    4X50 1.0 0.2 2.1 32.0 2296 0.387 165 200
    4X70 1.1 0.5 2.1 38.5 3175 0.268 210 245
    4X95 1.1 0.5 2.3 42.9 4665 0.193 260 300
    4X120 1.2 0.5 2.4 47.4 5728 0.153 305 335
    4X150 1.4 0.5 2.6 52.3 6999 0.124 345 380
    4X185 1.6 0.5 2.7 57.5 8657 0.0991 395 430
    4X240 1.7 0.5 3.0 64.3 11000 0.0754 465 500
    4X300 1.8 0.5 3.1 70.3 13587 0.0601 535 565
