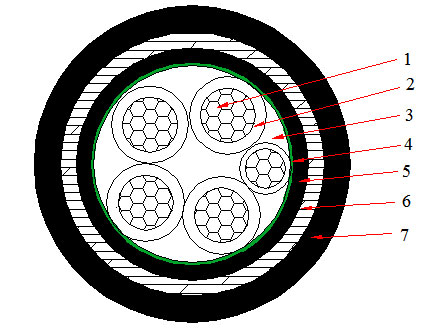

    0.6/1kV-4+1 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X4+1X2.5 0.7/0.7 0.2 1.8 16.3 434 4.61/7.41 - 50
    4X6+1X4 0.7/0.7 0.2 1.8 17.7 549 3.08/4.61 - 60
    4X10+1X6 0.7/0.7 0.2 1.8 20.3 759 1.83/3.08 64 85
    4X16+1X10 0.7/0.7 0.2 1.8 24 1079 1.15/1.83 83 110
    4X25+1X16 0.9/0.7 0.2 1.8 28.1 1557 0.727/1.15 110 140
    4X35+1X16 0.9/0.7 0.2 1.9 29.6 1962 0.524/1.15 135 170
    4X50+1X25 1/0.9 0.2 2.0 34 2601 0.387/0.727 165 200
    4X70+1X35 1.1/0.9 0.5 2.2 40.3 3916 0.268/0.524 210 245
    4X95+1X50 1.1/1.0 0.5 2.3 44.8 5260 0.193/0.387 260 300
    4X120+1X70 1.2/1.1 0.5 2.6 50.2 6545 0.153/0.268 305 335
    4X150+1X70 1.4/1.1 0.5 2.8 54.6 7780 0.124/0.268 345 380
    4X185+1X95 1.6/1.1 0.5 2.9 60.5 9688 0.0991/0.193 395 430
    4X240+1X120 1.7/1.2 0.5 3.0 67.1 12253 0.0754/0.153 465 500
    4X300+1X150 1.8/1.4 0.5 3.2 73.7 15078 0.0601/0.124 535 565
