0.6/1 kV N2XBY Cable (CU/XLPE/STA/PVC)

0.6/1 kV NYY Cable(CU/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

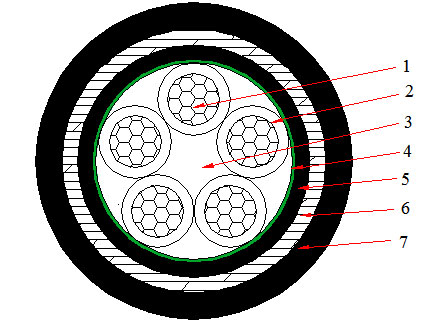

    0.6/1kV-5 Core Copper Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    5X2.5 0.7 0.2 1.8 15.6 350 7.41 - 35
    5X4 0.7 0.2 1.8 16.8 447 4.61 - 50
    5X6 0.7 0.2 1.8 18.2 569 3.08 - 60
    5X10 0.7 0.2 1.8 21.6 805 1.83 64 85
    5X16 0.7 0.2 1.8 24.6 1150 1.15 83 110
    5X25 0.9 0.2 1.8 29.0 1655 0.727 110 140
    5X35 0.9 0.2 1.9 31.0 2166 0.524 135 170
    5X50 1.0 0.2 2.1 35.7 2945 0.387 165 200
    5X70 1.1 0.5 2.3 42.4 4453 0.268 210 245
    5X95 1.1 0.5 2.4 47.2 5862 0.193 260 300
    5X120 1.2 0.5 2.6 51.8 7176 0.153 305 335
    5X150 1.4 0.5 2.7 57.6 8770 0.124 345 380
    5X185 1.6 0.5 2.9 63.8 10827 0.0991 395 430
    5X240 1.7 0.5 3.2 70.7 13770 0.0754 465 500
    5X300 1.8 0.5 3.4 78.0 16960 0.0601 535 565
