0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

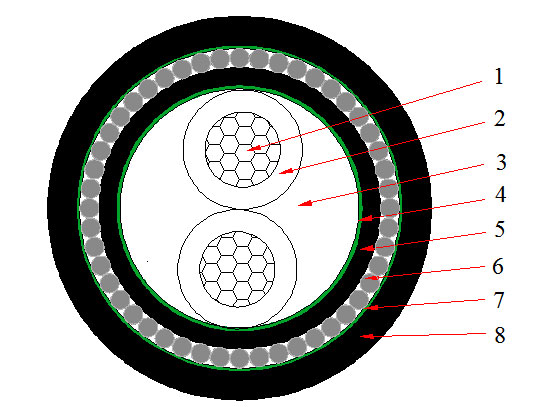

    0.6/1kV-2 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    2X2.5 0.7 0.8 1.8 14.8 364 7.41 23 32
    2X4 0.7 0.8 1.8 15.7 425 4.61 30 41
    2X6 0.7 1.25 1.8 17.6 646 3.08 39 53
    2X10 0.7 1.25 1.8 20.1 802 1.83 53 70
    2X16 0.7 1.25 1.8 22.3 1008 1.15 68 91
    2X25 0.9 1.6 1.8 26.3 1470 0.727 91 116
    2X35 0.9 1.6 1.8 27.6 1712 0.524 112 140
    2X50 1 1.6 1.9 30.8 2123 0.387 137 168
    2X70 1.1 2 2 35.4 2974 0.268 172 203
    2X95 1.1 2 2.1 39.5 3737 0.193 214 249
    2X120 1.2 2 2.3 42.9 4453 0.153 249 284
    2X150 1.4 2.5 2.4 48 5744 0.124 284 315
    2X185 1.6 2.5 2.6 52.7 6811 0.0991 326 357
