0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

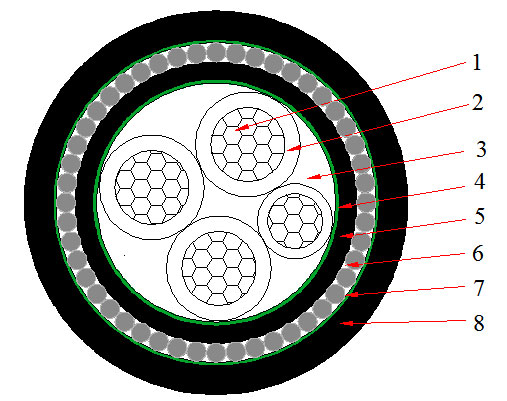

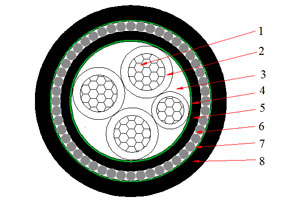

    0.6/1kV-3+1 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X4+1X2.5 0.7/0.7 1.25 1.8 17.8 873 4.61/7.41 26 36
    3X6+1X4 0.7/0.7 1.25 1.8 19.1 764 3.08/4.61 33 45
    3X10+1X6 0.7/0.7 1.25 1.8 21.6 1002 1.83/3.08 46 60
    3X16+1X10 0.7/0.7 1.6 1.8 25.1 1475 1.15/1.83 59 77
    3X25+1X16 0.9/0.7 1.6 1.8 28.7 2101 0.727/1.15 77 98
    3X35+1X16 0.9/0.7 1.6 1.8 30 2300 0.524/1.15 95 119
    3X50+1X25 1/0.9 1.6 2 34.1 2945 0.387/0.727 119 144
    3X70+1X35 1.1/0.9 2 2.1 39.2 4131 0.268/0.524 151 175
    3X95+1X50 1.1/1.0 2 2.3 43.2 5199 0.193/0.387 186 210
    3X120+1X70 1.2/1.1 2.5 2.4 48.8 6827 0.153/0.268 217 242
    3X150+1X70 1.4/1.1 2.5 2.6 52.9 7915 0.124/0.268 245 270
    3X185+1X95 1.6/1.1 2.5 2.7 57.8 9655 0.0991/0.193 284 305
    3X240+1X120 1.7/1.2 2.5 2.9 64.1 11988 0.0754/0.153 336 350
    3X300+1X150 1.8/1.4 2.5 3.1 69.8 14475 0.0601/0.124 389 396
