0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

0.6/1 kV N2XRY Cable (CU/XLPE/SWA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

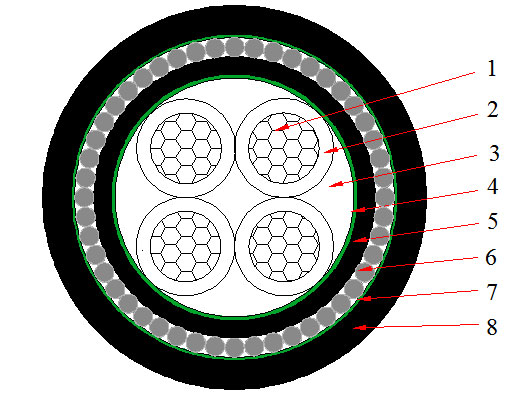

    0.6/1kV-4 Core Copper Conductor XLPE Insulated Steel Wire Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X2.5 0.7 0.8 1.8 16.1 472 7.41 20 27
    4X4 0.7 1.25 1.8 18.1 677 4.61 26 36
    4X6 0.7 1.25 1.8 19.3 804 3.08 33 45
    4X10 0.7 1.25 1.8 22.3 1088 1.83 46 60
    4X16 0.7 1.6 1.8 25.7 1571 1.15 59 77
    4X25 0.9 1.6 1.8 29.7 2085 0.727 77 98
    4X35 0.9 1.6 1.9 31.4 2543 0.524 95 119
    4X50 1 1.6 2 35.3 3214 0.387 119 144
    4X70 1.1 2 2.2 41.2 4571 0.268 151 175
    4X95 1.1 2 2.3 45.6 5782 0.193 186 210
    4X120 1.2 2.5 2.5 51.2 7557 0.153 217 242
    4X150 1.4 2.5 2.7 56.1 9080 0.124 245 270
    4X185 1.6 2.5 2.8 61.3 10822 0.0991 284 305
    4X240 1.7 2.5 3.1 68.1 13566 0.0754 336 350
    4X300 1.8 2.5 3.2 74.1 16356 0.0601 389 396
