0.6/1 kV NA2XBY Cable (AL/XLPE/STA/PVC)

0.6/1 kV NA2XBY Cable (AL/XLPE/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

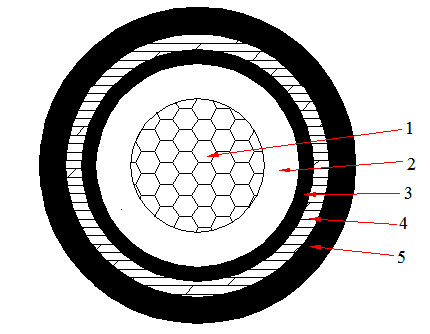

    0.6/1kV-1 Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    1X10 0.7 0.2 1.8 11.8 206 3.08 58 47
    1X16 0.7 0.2 1.8 12.9 247 1.91 75 62
    1X25 0.9 0.2 1.8 14.6 310 1.2 100 78
    1X35 0.9 0.2 1.8 15.2 352 0.868 120 94
    1X50 1.0 0.2 1.8 16.7 423 0.641 145 110
    1X70 1.1 0.2 1.8 18.5 523 0.443 190 135
    1X95 1.1 0.2 1.8 20.1 629 0.32 235 160
    1X120 1.2 0.2 1.8 21.7 738 0.253 270 185
    1X150 1.4 0.2 1.8 23.7 877 0.206 310 205
    1X185 1.6 0.2 1.8 25.7 1031 0.164 355 235
    1X240 1.7 0.2 1.8 28.0 1254 0.125 - -
    1X300 1.8 0.2 1.9 31.0 1495 0.1 - -
    1X400 2.0 0.2 2.0 35.0 1904 0.0778 - -
