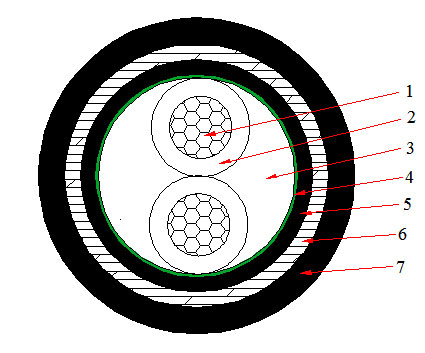

    0.6/1kV-2 Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    2X2.5 0.7 0.2 1.8 13.4 236 12.1 - 23
    2X4 0.7 0.2 1.8 14.3 269 7.41 - 30
    2X6 0.7 0.2 1.8 15.3 307 4.61 - 38
    2X10 0.7 0.2 1.8 17.8 397 3.08 50 47
    2X16 0.7 0.2 1.8 20.0 493 1.91 64 62
    2X25 0.9 0.2 1.8 23.3 643 1.2 86 78
    2X35 0.9 0.2 1.8 24.6 738 0.868 105 94
    2X50 1.0 0.2 1.8 27.2 896 0.641 125 110
    2X70 1.1 0.2 1.9 31.4 1164 0.443 165 135
    2X95 1.1 0.2 2.0 35.5 1480 0.32 200 160
    2X120 1.2 0.5 2.2 40.2 2164 0.253 235 185
    2X150 1.4 0.5 2.3 44.2 2572 0.206 270 205
    2X185 1.6 0.5 2.5 48.9 3089 0.164 310 235
