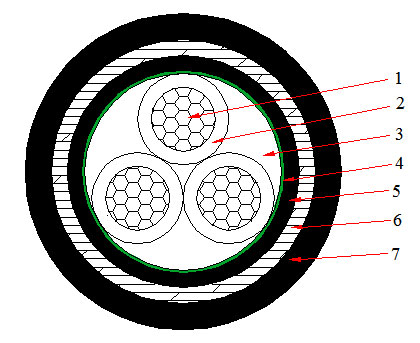

    0.6/1kV-3 Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X2.5 0.7 0.2 1.8 13.9 257 12.1 - 23
    3X4 0.7 0.2 1.8 14.8 296 7.41 - 30
    3X6 0.7 0.2 1.8 16.0 342 4.61 - 38
    3X10 0.7 0.2 1.8 18.6 447 3.08 50 47
    3X16 0.9 0.2 1.8 21.0 563 1.91 64 62
    3X25 0.9 0.2 1.8 24.6 744 1.2 86 78
    3X35 0.9 0.2 1.8 26.0 869 0.868 105 94
    3X50 1.0 0.2 1.9 28.9 1074 0.641 125 110
    3X70 1.1 0.2 2.0 33.9 1443 0.443 165 135
    3X95 1.1 0.5 2.2 39.0 2183 0.32 200 160
    3X120 1.2 0.5 2.3 42.7 2593 0.253 235 185
    3X150 1.4 0.5 2.4 47.5 3155 0.206 270 205
    3X185 1.6 0.5 2.6 52.1 3743 0.164 310 235
    3X240 1.7 0.5 2.8 58.3 4641 0.125 365 260
    3X300 1.8 0.5 2.9 63.6 5508 0.1 420 290
