High-strength AAAC

High-strength AAAC


Applications

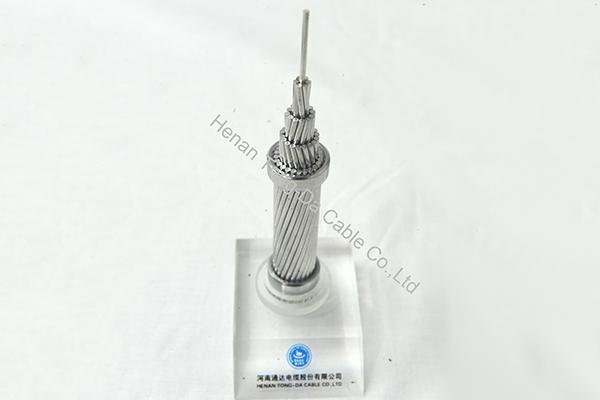

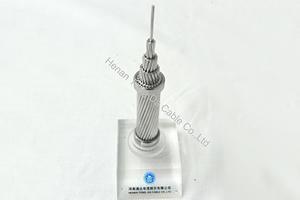

The 6201 all aluminum alloy conductor is used as bare overhead conductor for primary and secondary power distribution lines. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; offers good yield strength. Aluminum-alloy gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR.

Specifications
AAAC-6201-T81 bare conductor meets or exceeds the following ASTM specifications:
B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
B399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.

Construction
Standard 6201, 6101 aluminum alloy conductors, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. DC resistance at 20°C of the 6201,6101 conductors and of the standard ACSR of the same diameter are approximately the same. Overhead transmission conductors of the 6201,6101 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

AAAC 6201- All Aluminium Alloy Conductor AS 1531

Code Name Strands/Wire Diameter
mm
Overall Diameter (Approx)
mm
Calculated Equivalent Aluminum Area mm2 Sectional Area mm2 Approx.
Mass
kg/km
Calculated Minimum Breaking Load kN D.C. Resistance
at 20 ℃
Ω/km
Agate 7/1.75 5.25 14.3 16.84 46 4.71 1.972
Amethyst 7/2.25 6.75 23.7 27.83 76 7.78 1.194
Diamond 7/2.50 7.50 29.3 34.36 94 9.64 0.967
Dolomite 7/2.75 8.25 35.4 41.58 114 11.6 0.799
Emerald 7/3.00 9.00 42.2 49.48 136 13.9 0.671
Garnet 7/3.75 11.3 65.8 77.28 211 21.7 0.43
Jade 7/4.50 13.5 94.8 111.3 304 31.2 0.298
Jasper 7/4.75 14.3 106 124.0 340 34.8 0.268
Opal 19/3.25 16.3 134 157.6 433 44.2 0.212
Patronite 19/3.50 17.5 155 182.80 502 51.3 0.183
Pearl 19/3.75 18.8 178 209.8 577 58.8 0.159
Ruby 37/3.00 21.0 221 261.60 720 73.5 0.128
Ruthenium 37/3.25 22.8 260 307.00 845 86.1 0.109
Rutile 19/4.75 23.8 285 336.7 925 94.4 0.09991
Sapphire 37/3.75 26.3 345 408.50 1125 115 0.0819
Spinel 61/3.25 29.3 427 506.10 1396 135 0.0662
Tantalum 61/3.50 31.5 495 586.90 1620 156 0.0572
Topaz 61/3.75 33.8 568 673.40 1858 179 0.0498
Zircon 91/4.50 49.5 1220 1447 3997 384 0.0232
