0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

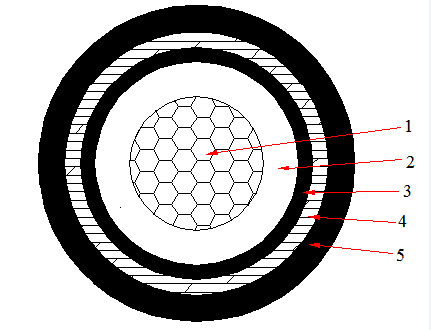

    0.6/1kV-1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    1X10 1.0 0.2 1.8 12.4 228 3.08 38 54
    1X16 1.0 0.2 1.8 13.5 271 1.91 51 71
    1X25 1.2 0.2 1.8 15.2 339 1.2 66 92
    1X35 1.2 0.2 1.8 15.8 383 0.868 81 110
    1X50 1.4 0.2 1.8 17.5 466 0.641 98 130
    1X70 1.4 0.2 1.8 19.1 563 0.443 120 160
    1X95 1.6 0.2 1.8 21.1 694 0.32 150 195
    1X120 1.6 0.2 1.8 22.5 800 0.253 180 225
    1X150 1.8 0.2 1.8 24.5 949 0.206 205 250
    1X185 2.0 0.2 1.8 26.4 1109 0.164 235 285
    1X240 2.2 0.2 1.9 29.2 1365 0.125 280 330
    1X300 2.4 0.2 1.9 32.0 1638 0.1 320 370
    1X400 2.6 0.5 2.1 37.3 2432 0.0778 380 430
    1X500 2.8 0.5 2.2 41.5 2954 0.0605 440 580
    1X630 2.8 0.5 2.3 45.1 3490 0.0469 500 650
