0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

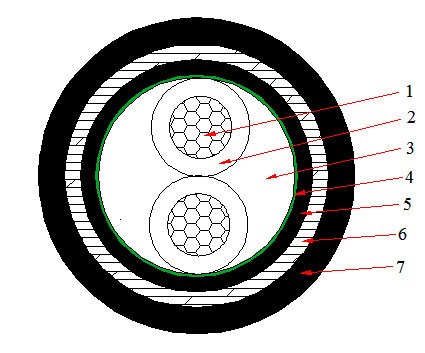

    0.6/1kV-2 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    2X2.5 0.8 0.2 1.8 13.5 251 12.1 - -
    2X4 1 0.2 1.8 15.3 311 7.41 - -
    2X6 1 0.2 1.8 16.3 352 4.61 - -
    2X10 1 0.2 1.8 19.0 447 3.08 38 54
    2X16 1 0.2 1.8 21.2 549 1.91 51 71
    2X25 1.2 0.2 1.8 24.5 712 1.2 66 92
    2X35 1.2 0.2 1.8 25.8 810 0.868 81 110
    2X50 1.4 0.2 1.9 29.3 1019 0.641 98 130
    2X70 1.4 0.2 2.0 32.7 1264 0.443 120 160
    2X95 1.6 0.5 2.1 38.9 2033 0.32 150 195
    2X120 1.6 0.5 2.2 41.9 2343 0.253 180 225
    2X150 1.8 0.5 2.4 45.9 2777 0.206 205 250
    2X185 2 0.5 2.5 50.6 3319 0.164 235 285
