0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

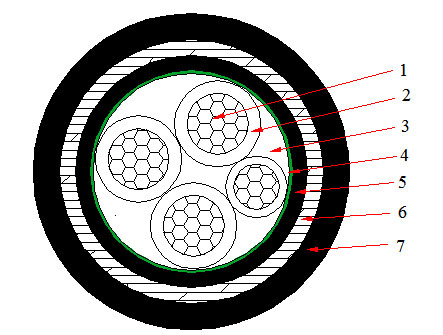

    0.6/1kV-3+1 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    1.0/0.8 0.2 1.8 16.7 383 7.41/12.1 - -
    1.0/1.0 0.2 1.8 18.2 443 4.61/7.41 - -
    1.0/1.0 0.2 1.8 20.8 561 3.08/4.61 38 54
    1.0/1.0 0.2 1.8 23.5 711 1.91/3.08 51 71
    1.2/1.0 0.2 1.8 27.2 937 1.2/1.91 66 92
    1.2/1.0 0.2 1.8 28.4 1057 0.868/1.91 81 110
    1.4/1.2 0.2 2.0 32.8 1378 0.641/1.2 98 130
    1.4/1.2 0.5 2.1 38.0 2123 0.443/0.868 120 160
    1.6/1.4 0.5 2.3 43.0 2673 0.32/0.641 150 195
    1.6/1.4 0.5 2.4 47.3 3221 0.253/0.443 180 225
    1.8/1.4 0.5 2.5 51.0 3703 0.206/0.443 205 250
    2.0/1.6 0.5 2.7 56.2 4472 0.164/0.32 235 285
    2.2/1.6 0.5 2.9 62.7 5540 0.125/0.253 280 330
    2.4/1.8 0.5 3.1 68.9 6643 0.1/0.206 320 370
