0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

0.6/1 kV NAYBY Cable (AL/PVC/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

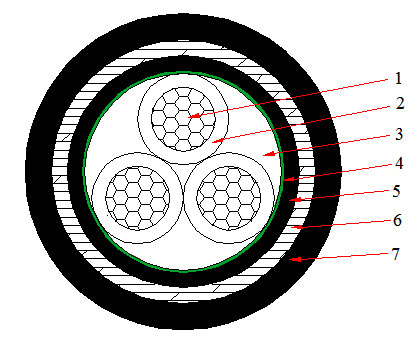

    0.6/1kV-3 Core Aluminum Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X2.5 0.8 0.2 1.8 14.3 276 12.1 - -
    3X4 1.0 0.2 1.8 16.1 347 7.41 - -
    3X6 1.0 0.2 1.8 17.3 397 4.61 - -
    3X10 1.0 0.2 1.8 19.9 510 3.08 38 54
    3X16 1.0 0.2 1.8 22.3 634 1.91 51 71
    3X25 1.2 0.2 1.8 25.9 833 1.2 66 92
    3X35 1.2 0.2 1.8 27.2 961 0.868 81 110
    3X50 1.4 0.2 1.9 31.1 1229 0.641 98 130
    3X70 1.4 0.2 2.0 35.2 1577 0.443 120 160
    3X95 1.6 0.5 2.2 41.3 2432 0.32 150 195
    3X120 1.6 0.5 2.3 44.6 2824 0.253 180 225
    3X150 1.8 0.5 2.5 49.4 3424 0.206 205 250
    3X185 2 0.5 2.6 54.0 4045 0.164 235 285
    3X240 2.2 0.5 2.8 60.6 5047 0.125 280 330
    3X300 2.4 0.5 3.0 66.4 6024 0.1 320 370
