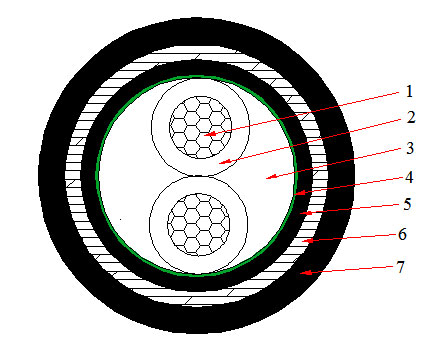

    0.6/1kV-2 Core Copper Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    2X2.5 0.8 0.2 1.8 13.5 249 7.41 - -
    2X4 1 0.2 1.8 15.3 362 4.61 - -
    2X6 1 0.2 1.8 16.3 427 3.08 - -
    2X10 1 0.2 1.8 19.0 572 1.83 50 -
    2X16 1 0.2 1.8 21.2 749 1.15 66 -
    2X25 1.2 0.2 1.8 24.5 1012 0.727 85 -
    2X35 1.2 0.2 1.8 25.8 1235 0.524 105 105
    2X50 1.4 0.2 1.9 29.3 1594 0.387 125 125
    2X70 1.4 0.2 2.0 32.7 2089 0.268 160 155
    2X95 1.6 0.5 2.1 38.9 3170 0.193 195 185
    2X120 1.6 0.5 2.2 41.9 3793 0.153 235 215
    2X150 1.8 0.5 2.4 45.9 4602 0.124 265 235
    2X185 2 0.5 2.5 50.6 5569 0.0991 300 265
