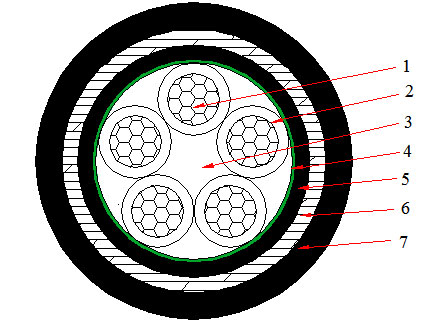

    0.6/1kV-5 Core Copper Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    5X2.5 0.8 0.2 1.8 16.1 435 7.41 - -
    5X4 1 0.2 1.8 18.4 585 4.61 - -
    5X6 1 0.2 1.8 19.9 713 3.08 - -
    5X10 1 0.2 1.8 23.2 1013 1.83 50 70
    5X16 1 0.2 1.8 26.2 1372 1.15 66 92
    5X25 1.2 0.2 1.9 30.8 1926 0.727 85 115
    5X35 1.2 0.2 2.0 32.7 2456 0.524 105 140
    5X50 1.4 0.5 2.2 39.3 3664 0.387 125 175
    5X70 1.4 0.5 2.3 43.9 4826 0.268 160 205
    5X95 1.6 0.5 2.5 50.4 6423 0.193 195 250
    5X120 1.6 0.5 2.6 54.4 7813 0.153 235 290
    5X150 1.8 0.5 2.8 60.3 9665 0.124 265 325
    5X185 2 0.5 3.0 66.1 11692 0.0991 300 365
    5X240 2.2 0.5 3.3 73.9 14909 0.0754 355 420
    5X300 2.4 0.5 3.5 81.5 18394 0.0601 410 475
