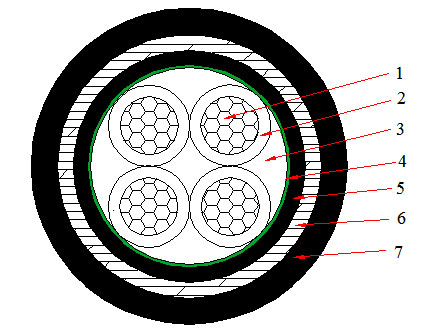

    0.6/1kV-4 Core Copper Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    4X2.5 0.8 0.2 1.8 14.9 382 7.41 - -
    4X4 1 0.2 1.8 17.2 497 4.61 - -
    4X6 1 0.2 1.8 18.5 607 3.08 - -
    4X10 1 0.2 1.8 21.5 848 1.83 50 70
    4X16 1 0.2 1.8 24.1 1148 1.15 66 92
    4X25 1.2 0.2 1.8 28.1 1590 0.727 85 115
    4X35 1.2 0.2 1.9 29.8 2018 0.524 105 140
    4X50 1.4 0.2 2.0 34.6 2690 0.387 125 175
    4X70 1.4 0.5 2.2 40.0 3980 0.268 160 205
    4X95 1.6 0.5 2.4 45.4 5230 0.193 195 250
    4X120 1.6 0.5 2.5 49.5 6403 0.153 235 290
    4X150 1.8 0.5 2.6 54.4 7848 0.124 265 325
    4X185 2 0.5 2.8 60.0 9545 0.0991 300 365
    4X240 2.2 0.5 3.0 66.9 12140 0.0754 355 420
    4X300 2.4 0.5 3.2 73.4 14881 0.0601 410 475
