0.6/1 kV NYBY Cable(CU/PVC/STA/PVC)

0.6/1 kV NAYY Cable(AL/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

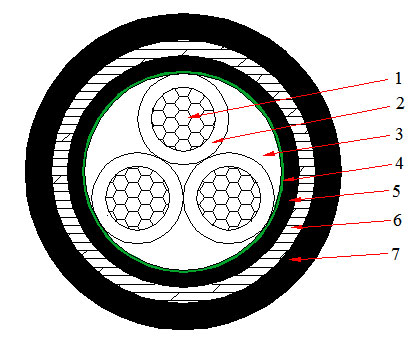

    0.6/1kV-3 Core Copper Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    3X2.5 0.8 0.2 1.8 14.3 323 7.41 - -
    3X4 1.0 0.2 1.8 16.1 422 4.61 - -
    3X6 1.0 0.2 1.8 17.3 509 3.08 - -
    3X10 1.0 0.2 1.8 19.9 698 1.83 50 70
    3X16 1.0 0.2 1.8 22.3 935 1.15 66 92
    3X25 1.2 0.2 1.8 25.9 1284 0.727 85 115
    3X35 1.2 0.2 1.8 27.2 1599 0.524 105 140
    3X50 1.4 0.2 1.9 31.1 2093 0.387 125 175
    3X70 1.4 0.2 2.0 35.2 2817 0.268 160 205
    3X95 1.6 0.5 2.2 41.3 4141 0.193 195 250
    3X120 1.6 0.5 2.3 44.6 5003 0.153 235 290
    3X150 1.8 0.5 2.5 49.4 6167 0.124 265 325
    3X185 2 0.5 2.6 54.0 7426 0.0991 300 365
    3X240 2.2 0.5 2.8 60.6 9480 0.0754 355 420
    3X300 2.4 0.5 3.0 66.4 11584 0.0601 410 475
