0.6/1 kV NYY Cable(CU/PVC/PVC)

0.6/1 kV NYY Cable(CU/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
  • Back
    Inquiry

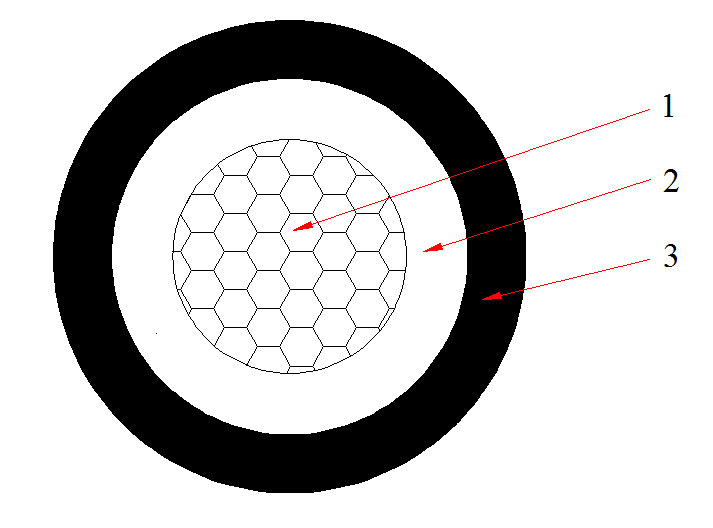

    0.6/1kV-1 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    1X10 1.0 1.4 8.6 159 1.83 55 84
    1X16 1.0 1.4 9.6 225 1.15 74 110
    1X25 1.2 1.4 11.2 321 0.727 95 135
    1X35 1.2 1.4 12.2 418 0.524 115 165
    1X50 1.4 1.4 13.6 552 0.387 140 195
    1X70 1.4 1.4 15.5 754 0.268 180 240
    1X95 1.6 1.5 17.7 1020 0.193 220 290
    1X120 1.6 1.5 19.1 1268 0.153 255 325
    1X150 1.8 1.6 21 1584 0.124 295 370
    1X185 2.0 1.7 23.3 1942 0.0991 340 420
    1X240 2.2 1.8 26.2 2514 0.0754 405 485
    1x300 2.4 1.9 29 3127 0.0601 470 550
    1x400 2.6 2 32.3 4054 0.047 550 630
    1x500 2.8 2.1 36.2 5164 0.0366 635 715
    1X630 2.8 2.2 40 6431 0.0283 735 820
