0.6/1 kV NYY Cable(CU/PVC/PVC)

0.6/1 kV NYY Cable(CU/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
  • Back
    Inquiry

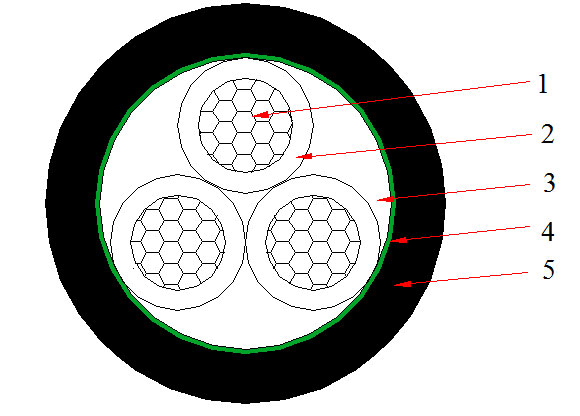

    0.6/1kV-3 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    3X2.5 0.8 1.8 11.4 184 7.41 21 -
    3X4 1.0 1.8 13.3 263 4.61 28 -
    3X6 1.0 1.8 14.5 337 3.08 36 -
    3X10 1.0 1.8 17.1 495 1.83 49 72
    3X16 1.0 1.8 19.5 703 1.15 66 94
    3X25 1.2 1.8 23.1 1010 0.727 84 120
    3X35 1.2 1.8 24.5 1311 0.524 100 145
    3X50 1.4 1.8 28.2 1746 0.387 125 175
    3X70 1.4 1.9 31.8 2390 0.268 160 210
    3X95 1.6 2.1 36.6 3247 0.193 195 255
    3X120 1.6 2.2 39.9 4034 0.153 235 295
    3X150 1.8 2.3 44.2 5044 0.124 260 330
    3X185 2 2.5 48.8 6191 0.0991 305 370
    3X240 2.2 2.7 55.0 8031 0.0754 360 425
    3X300 2.4 2.8 60.8 9989 0.0601 410 480
