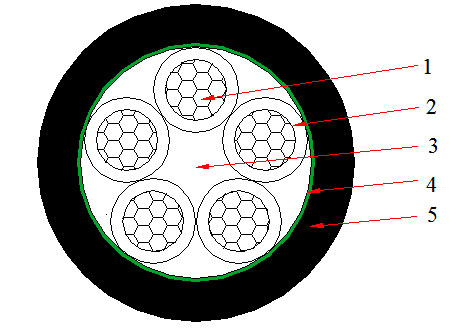

    0.6/1kV-5 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    5X2.5 0.8 1.8 13.3 274 7.41 21 -
    5X4 1 1.8 15.6 397 4.61 28 -
    5X6 1 1.8 17.1 508 3.08 36 -
    5X10 1 1.8 20.4 768 1.83 49 72
    5X16 1 1.8 23.4 1095 1.15 66 94
    5X25 1.2 1.8 27.9 1589 0.727 84 120
    5X35 1.2 1.9 29.7 2091 0.524 100 145
    5X50 1.4 2.0 34.6 2818 0.387 125 175
    5X70 1.4 2.2 39.2 3873 0.268 160 210
    5X95 1.6 2.3 45.2 5275 0.193 195 255
    5X120 1.6 2.5 49.3 6567 0.153 235 295
    5X150 1.8 2.6 54.8 8222 0.124 260 330
    5X185 2 2.8 60.5 10104 0.0991 305 370
    5X240 2.2 3.1 68.3 13124 0.0754 360 425
    5X300 2.4 3.3 75.5 16342 0.0601 410 480
