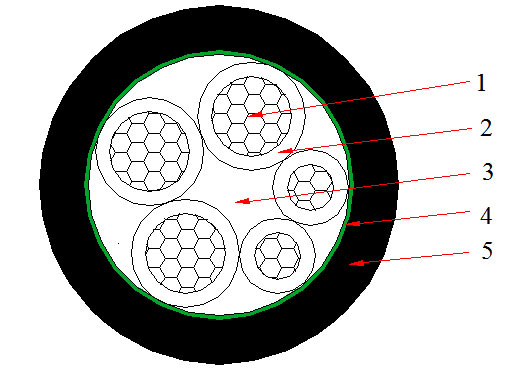

    0.6/1kV-3+2 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    3*4+2*2.5 1.0/0.8 1.8 14.7 341 4.61/7.41 28 -
    3*6+2*4 1.0/1.0 1.8 16.5 461 3.08/4.61 36 -
    3*10+2*6 1.0/1.0 1.8 19.0 657 1.83/3.08 49 72
    3*16+2*10 1.0/1.0 1.8 22.2 959 1.15/1.83 66 94
    3*25+2*16 1.2/1.0 1.8 26.0 1399 0.727/1.15 84 120
    3*35+2*16 1.2/1.0 1.8 27.0 1680 0.524/1.15 100 145
    3*50+2*25 1.4/1.2 1.9 32.0 2331 0.387/0.727 125 175
    3*70+2*35 1.4/1.2 2.0 35.4 3162 0.268/0.524 160 210
    3*95+2*50 1.6/1.4 2.2 41.0 4318 0.193/0.387 195 255
    3*120+2*70 1.6/1.4 2.3 45.3 5498 0.153/0.268 235 295
    3*150+2*70 1.8/1.4 2.4 48.5 6379 0.124/0.268 260 330
    3*185+2*95 2.0/1.6 2.6 54.4 8168 0.0991/0.193 305 370
    3*240+2*120 2.2/1.6 2.8 60.7 10462 0.0754/0.153 360 425
    3*300+2*150 2.4/1.8 3.0 67.2 12956 0.0601/0.124 410 480
