0.6/1 kV NYY Cable(CU/PVC/PVC)

0.6/1 kV NYY Cable(CU/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
  • Back
    Inquiry

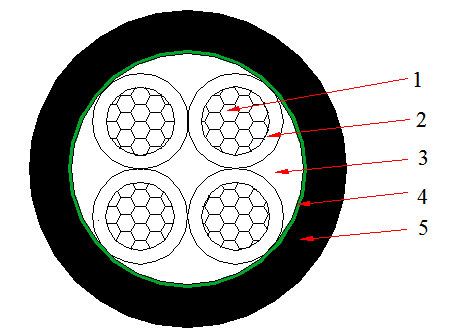

    0.6/1kV-4 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4X2.5 0.8 1.8 12.3 223 7.41 21 -
    4X4 1 1.8 14.4 325 4.61 28 -
    4X6 1 1.8 15.7 421 3.08 36 -
    4X10 1 1.8 18.7 624 1.83 49 72
    4X16 1 1.8 21.3 895 1.15 66 94
    4X25 1.2 1.8 25.3 1293 0.727 84 120
    4X35 1.2 1.8 26.9 1690 0.524 100 145
    4X50 1.4 1.9 31.2 2271 0.387 125 175
    4X70 1.4 2.0 35.3 3117 0.268 160 210
    4X95 1.6 2.2 40.7 4241 0.193 195 255
    4X120 1.6 2.3 44.3 5276 0.153 235 295
    4X150 1.8 2.5 49.2 6603 0.124 260 330
    4X185 2 2.6 54.4 8111 0.0991 305 370
    4X240 2.2 2.9 61.3 10531 0.0754 360 425
    4X300 2.4 3.1 67.8 13109 0.0601 410 480
