0.6/1 kV NYY Cable(CU/PVC/PVC)

0.6/1 kV NYY Cable(CU/PVC/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
  • Back
    Inquiry

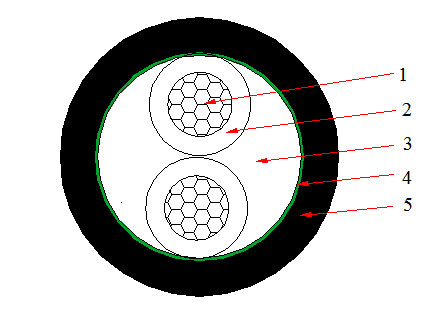

    0.6/1kV-2 Core Copper Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    2X2.5 0.8 1.8 10.9 149 7.41 25 -
    2X4 1 1.8 12.7 228 4.61 33 -
    2X6 1 1.8 13.7 278 3.08 42 -
    2X10 1 1.8 16.2 380 1.83 58 84
    2X16 1 1.8 18.4 530 1.15 76 110
    2X25 1.2 1.8 21.7 754 0.727 98 140
    2X35 1.2 1.8 23.0 962 0.524 120 175
    2X50 1.4 1.8 26.4 1274 0.387 145 205
    2X70 1.4 1.9 29.7 1724 0.268 185 255
    2X95 1.6 2.0 34.2 2333 0.193 230 305
    2X120 1.6 2.1 37.2 2886 0.153 265 350
    2X150 1.8 2.2 41.2 3601 0.124 305 390
    2X185 2 2.4 45.5 4415 0.0991 350 440
