0.6/1 kV NA2XY Cable (AL/XLPE/PVC)

0.6/1 kV NA2XY Cable (AL/XLPE/PVC)

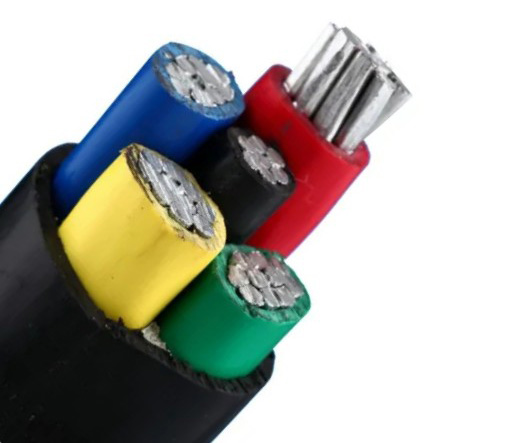

NA2XY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Specifications
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

Construction
  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
Download Data Sheet
Single-core Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Outer sheath: Polyvinyl chloride PVC

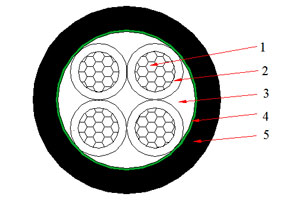

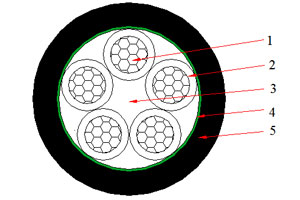

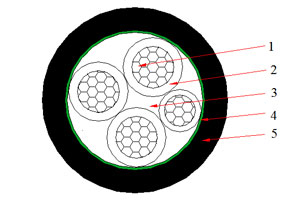

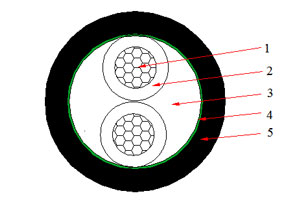

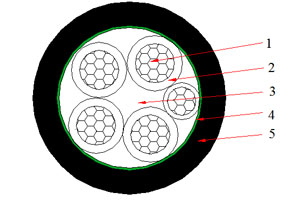

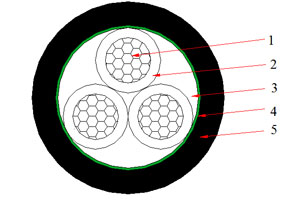

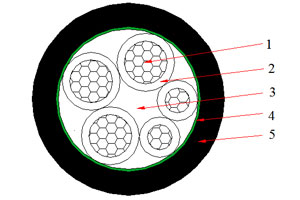

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
