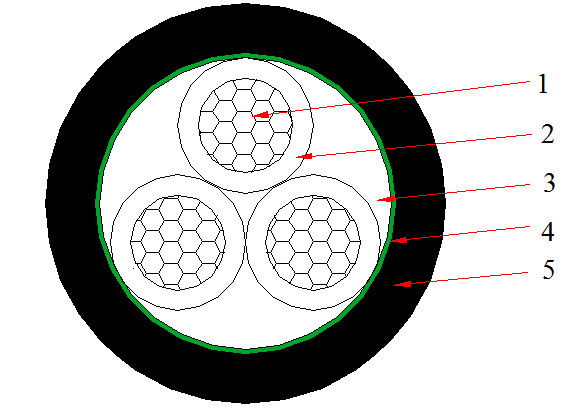

    0.6/1kV-3 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    3X10 0.7 1.8 17.2 250 3.08 50 66
    3X16 0.7 1.8 19.4 330 1.91 65 85
    3X25 0.9 1.8 22.8 480 1.20 87 110
    3X35 0.9 1.8 25.0 580 0.868 105 130
    3X50 1.0 1.8 24.4 670 0.641 130 160
    3X70 1.1 1.9 29.4 910 0.443 165 195
    3X95 1.1 2.0 33.6 1170 0.320 205 235
    3X120 1.2 2.1 35.9 1460 0.253 240 265
    3X150 1.4 2.3 39.9 1820 0.206 270 300
    3X185 1.6 2.4 44.1 2200 0.164 315 340
    3X240 1.7 2.6 51.1 2850 0.125 375 395
    3X300 1.8 2.7 56.1 3500 0.100 435 445
    3X400 2.0 3.0 62.4 4500 0.0778 510 510
