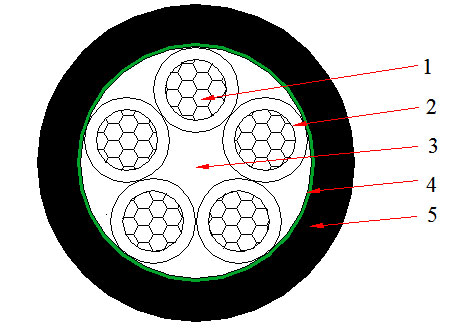

    0.6/1kV-5 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    5X10 0.7 1.8 18.8 360 3.08 50 66
    5X16 0.7 1.8 21.8 485 1.91 65 85
    5X25 0.9 1.8 26.2 690 1.20 87 110
    5X35 0.9 1.8 28.0 865 0.868 105 130
    5X50 1.0 1.9 32.4 1138 0.641 130 160
    5X70 1.1 2.1 37.4 1575 0.443 165 195
    5X95 1.1 2.2 41.7 2068 0.320 205 235
    5X120 1.2 2.4 46.2 2550 0.253 240 265
    5X150 1.4 2.6 53.1 3165 0.206 270 300
    5X185 1.6 2.8 58.9 3950 0.164 315 340
    5X240 1.7 3.0 65.6 5025 0.125 375 395
    5X300 1.8 3.2 72.0 6190 0.100 435 445
