0.6/1 kV NA2XY Cable (AL/XLPE/PVC)

0.6/1 kV NA2XY Cable (AL/XLPE/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

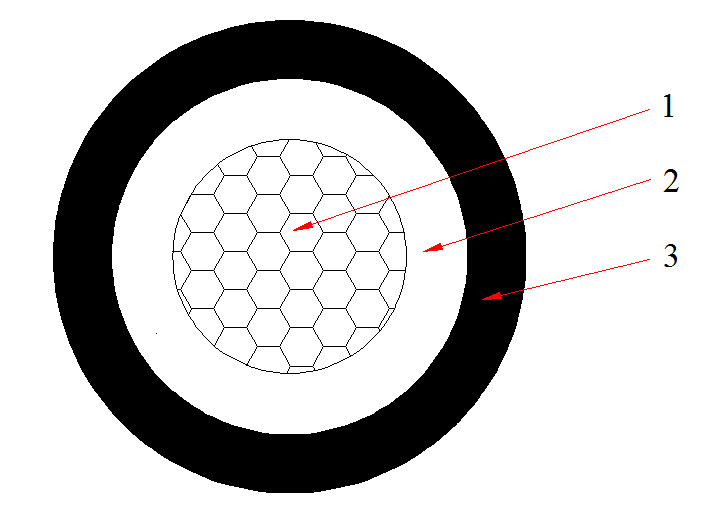

    0.6/1kv-1 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    1X10 0.7 1.4 8.0 75 3.08 55 71
    1X16 0.7 1.4 9.0 106 1.91 71 91
    1X25 0.9 1.4 10.6 150 1.20 94 115
    1X35 0.9 1.4 11.6 180 0.868 115 140
    1X50 1.0 1.4 13.1 240 0.641 140 165
    1X70 1.1 1.4 15.0 320 0.443 180 205
    1X95 1.1 1.5 16.8 400 0.320 220 245
    1X120 1.2 1.5 18.4 500 0.253 260 280
    1X150 1.4 1.6 20.5 600 0.206 300 315
    1X185 1.6 1.6 22.6 730 0.164 350 360
    1X240 1.7 1.7 25.2 930 0.125 414 420
    1x300 1.8 1.8 27.8 1140 0.100 485 475
    1x400 2.0 1.9 31.4 1500 0.0778 570 545
    1x500 2.2 2.0 34.9 1800 0.0605 670 620
    1X630 2.4 2.2 39.1 2285 0.0469 790 705
