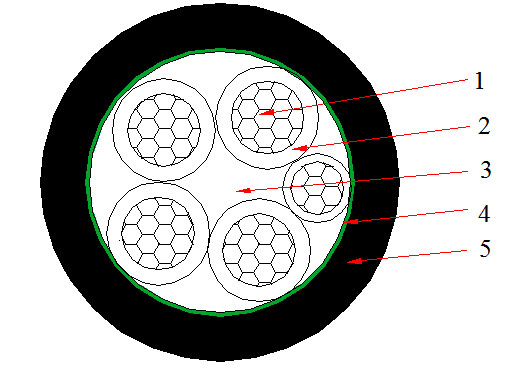

    0.6/1kV-4+1 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4X16+1X10 0.7/0.7 1.8 21.3 450 1.91/3.08 65 85
    4X25+1X16 0.9/0.7 1.8 25.7 650 1.20/1.91 87 110
    4X35+1X16 0.9/0.7 1.8 28.2 795 0.868/1.91 105 130
    4X50+1X25 1.0/0.9 1.9 28.9 1020 0.641/1.20 130 160
    4X70+1X35 1.1/0.9 2.0 32.2 1360 0.443/0.868 165 195
    4X95+1X50 1.1/1.0 2.2 36.9 1870 0.320/0.641 205 235
    4X120+1X70 1.2/1.1 2.3 40.8 2342 0.253/0.443 240 265
    4X150+1X70 1.4/1.1 2.5 44.7 2778 0.206/0.443 270 300
    4X185+1X95 1.6/1.1 2.7 50.7 3495 0.164/0.320 315 340
    4X240+1X120 1.7/1.2 2.9 56.4 4416 0.125/0.253 375 395
    4X300+1X150 1.8/1.4 3.1 64.0 5422 0.100/0.206 435 445
