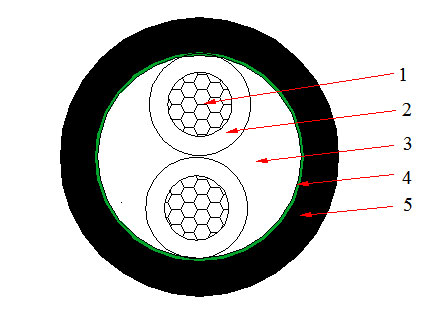

    0.6/1kV-2 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    2X10 0.7 1.8 15.4 200 3.08 58 78
    2X16 0.7 1.8 17.4 270 1.91 75 100
    2X25 0.9 1.8 20.5 380 1.20 100 130
    2X35 0.9 1.8 22.5 480 0.868 120 155
    2X50 1.0 1.8 20.3 490 0.641 150 185
    2X70 1.1 1.8 23.3 630 0.443 190 225
    2X95 1.1 1.9 26.2 820 0.320 235 275
    2X120 1.2 2.0 29.4 1000 0.253 275 315
    2X150 1.4 2.2 32.6 1250 0.206 315 350
    2X185 1.6 2.3 36.0 1540 0.164 365 395
