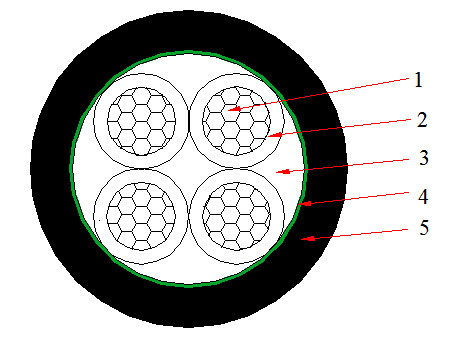

    0.6/1kV-4 Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4X10 0.7 1.8 18.6 300 3.08 50 66
    4X16 0.7 1.8 21.0 400 1.91 65 85
    4X25 0.9 1.8 24.9 570 1.20 87 110
    4X35 0.9 1.8 28.3 710 0.868 105 130
    4X50 1.0 1.8 28.4 850 0.641 130 160
    4X70 1.1 2.0 33.1 1160 0.443 165 195
    4X95 1.1 2.1 37.1 1520 0.320 205 235
    4X120 1.2 2.2 40.8 1898 0.253 240 265
    4X150 1.4 2.4 45.2 2369 0.206 270 300
    4X185 1.6 2.6 52.1 2925 0.164 315 340
    4X240 1.7 2.8 57.8 3700 0.125 375 395
    4X300 1.8 3.0 63.5 4580 0.100 435 445
    4X400 2.0 3.3 70.9 5800 0.0778 510 510
